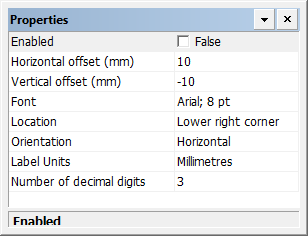

Enabled

True: Display neatline dimensions labels.

False: Do not display neatline dimensions labels.

Horizontal offset

The distance between the neatline and the label. Value can be positive or negative.

Type a value.

Vertical offset

The distance between the neatline and the label. Value can be positive or negative.

Type a value.

Font

The font used for the neatline dimensions labels.

Click browse (...) and select font settings from a font dialog box.

Location

The location of the neatline dimensions labels. Choose from:

• Lower left corner

• Upper left corner

• Upper right corner

• Lower right corner

Orientation

The orientation of the dimensions label. Choose from:

• Horizontal

• Vertical

Label Units

The units of measure displayed in the labels. Choose from:

• Inches

• Millimetres

Number of decimal digits

The number of digits displayed after the decimal point.

Type a value.
