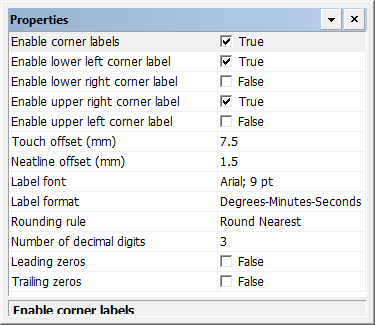

Corner Labels

Property	Description
Enable corner labels	True: Display corner coordinate labels. False: Do not display corner coordinate labels.
Enable lower left corner label	True: Display a label in the lower left corner. False: Do not display a label in the lower left corner.
Enable lower right corner label	True: Display a label in the lower right corner. False: Do not display a label in the lower right corner.
Enable upper right corner label	True: Display a label in the upper right corner. False: Do not display a label in the upper right corner.
Enable upper left corner label	True: Display a label in the upper left corner. False: Do not display a label in the upper left corner.
Touch offset	The distance between the neatline and the ends of the labels in millimetres at map scale. A value of 0 means that the ends of the labels will touch the neatline and will cross each other. Type a value.
Neatline offset	The distance between the neatline and the labels in millimetres at map scale. Type a value.
Label font	The font used for the corner labels. Click browse (...) and select font settings from a font dialog box.
Label Format	The format used for the coordinates in the labels. Choose from: • Degrees-Minutes-Seconds • Degrees-Minutes • Degrees
Rounding Rule	Rounding rules for the corner labels. Choose from: • `Round Nearest`: Round the latitude or longitude to the nearest value. • `Round Ou`t: Add a rounding value if the label is on the upper or right edge (53-27.50008 to 53-27'.51). Subtract a rounding value if the label is on the lower or left edge (53-27.50008 to 53-27'.50). • `Round In`: Subtract a rounding value if the label is on the upper or right edge. Add a rounding value if the label is on the lower or left edge.
Number of decimal digits	The number of digits displayed after the decimal point. Type a value.
Leading zeros	True: Display leading zeros in the labels. The number of zeroes is set by the Number of decimal digits property. False: Do not display leading zeros in the labels.
Trailing zeros	True: Display trailing zeros in the labels. The number of zeroes is set by the Number of decimal digits property. False: Do not display trailing zeros in the labels.
