CARIS HIPS and SIPS : HIPS and SIPS : HIPS and SIPS Commands A to K : Change CUBE Disambiguation Method


Change CUBE Disambiguation Method



Menu

Tools > Coverages > Modify > Change CUBE Disambiguation Method

CARIS Batch

Update Raster CUBE Disambiguation

This process updates the CUBE disambiguation on a gridded raster surface or on a variable resolution surface created using the CUBE population method.

See Disambiguation for description of the method.

Interface

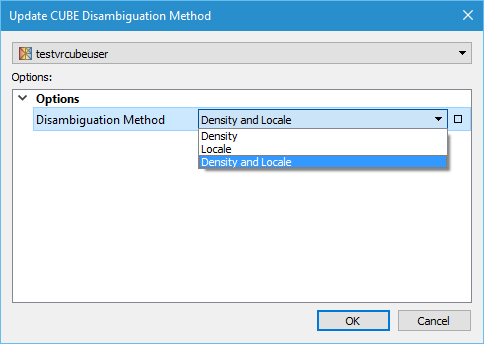

The Update CUBE Disambiguation Method dialog box contains these CUBE parameters.

Option

Description

Density

Disambiguate by number of samples.

Locale

Disambiguate by surrounding nodes.

Density & Locale

Disambiguate by a combination of sample count and surrounding nodes. (Default value.)

Procedure

1. Open a regular gridded or variable resolution surface.

2. Select the surface.

3. Select the Change CUBE Disambiguation Method command.

4. Select a disambiguation method.

5. Click OK.
