Subsidiary graduations are vertical or horizontal tick marks located in the body of the chart. Subsidiary graduations may appear on large-size charts or on charts where a graduated border cannot be generated. Subsidiary graduations are made independently from the border.
When adding subsidiary graduations, the spacing between the tick lines will be calculated according to the properties of the active panel and the graduations will be generated automatically.
There are four ready-made templates listed in the Template Editor. These can be used for new graduations to suit your charting specifications.
• Latitude 1 minute
• Latitude 6 seconds
• Longitude 1 minute
• Longitude 6 seconds

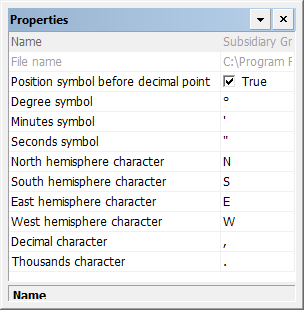

Properties
Property | Description |
|---|---|
Name | The name of the template type. Read-only. |
File name | The path and name of the file containing the subsidiary graduations templates. Read-only. |
Position symbol before decimal point | Control the position of the last unit symbol (degrees, minutes, or seconds) in the label. You must click on a subsidiary graduations style to see the changes. True: The symbol is displayed immediately before the decimal point. False: The symbol is displayed immediately after the decimal point. |
Degree symbol | The character used to indicate degrees. Type a character or insert a symbol from the character map. |
Minutes symbol | The character used to indicate minutes. Type a character or insert a symbol from the character map. |
Seconds symbol | The character used to indicate seconds. Type a character or insert a symbol from the character map. |
North hemisphere character | The character used to indicate the northern hemisphere. Type a character. |
South hemisphere character | The character used to indicate the southern hemisphere. Type a character. |
East hemisphere character | The character used to indicate the eastern hemisphere. Type a character. |
West hemisphere character | The character used to indicate the western hemisphere. Type a character. |
Decimal character | The character used to indicate decimal places. Type a character. |
Thousands character | The character used to divide the thousands. Type a character. |
