CARIS Easy View : Commands : Select by Coordinate Range


Select by Coordinate Range



Menu

Select > Features > Coordinate Range

Select all features within a specific circular range of a given coordinate.

Related commands:

• Create Selection

• Select All

• Select All in Display

• Select by Range

• Select by Lasso

• Select by Circle

• Select by Superselection Range

• Select by Attribute Value

• Select by Feature Acronym

• Select by Feature Object ID

• Select by Feature Type

• Select by Rule File

• Select Features Inside Areas

• Select Features that Intersect Areas

• Add to Selection

• Clear Selection

• Remove Others from Selection

• Remove

• Centre on Selection

• Centre on Superselection

• Copy Selected

• Select Collections

• Select Master/Slave Relationships

Procedure

1. Select the Coordinate Range command.

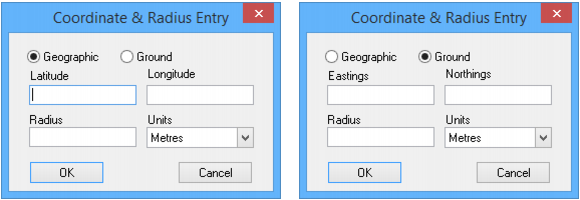

The Coordinate & Radius Entry dialog box is displayed.

2. Select Geographic or Ground.

The coordinate labels are Latitude or Longitude if you select Geographic, and Easting and Northing if you select Ground.

3. Type values in the coordinate fields.

4. Type a value for the Radius.

This determines the size of the area around the coordinates.

5. Select Metres or Nautical Miles from the Units list.

6. Click OK.

All features within the specified radius are selected.
