Menu | Select > Features By > Marker |
Tool |
|
Select features based on marker types.
Related commands:
• • • • • • • • • • • • • • • • • • • • | • • • • • • • • • • • • • • • • • • • • |
Interface
Option | Description |
|---|---|
Select the marker status or type | To filter on status or type only: • Select one or more items from the appropriate list. To filter on both status and type, do the following: • Select one or more items from the Marker Status list. • Select AND or OR. • Select one or more items from the Marker Type list. If you select AND, both conditions must be met. If you select OR, only one condition must be met. |
Procedure
1. Select the Select by Marker command.

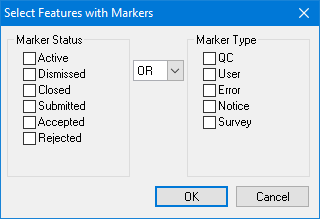

The Select Features with Markers dialog box is displayed.
2. Select the marker statuses and types.
3. Click OK.
Features are selected.
