This step is only displayed if you are creating an HPD database product. |
Product group and sources of data.

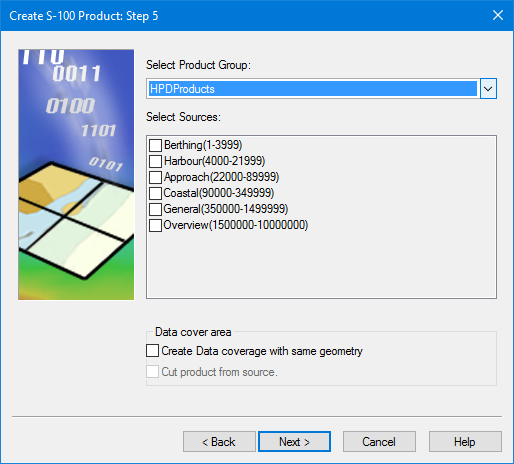

Interface
Option | Description |
|---|---|
Select Product Group | The group the product will belong to when you use one of the open commands. |
Select Sources | The sources or usages that contain the data. Select one or more. |
Data cover area | • Create data coverage with same geometry: • On: Create a product with a data cover area that is same as the spatial extent but not populated with data. Cut product from source becomes available. • Off: Create a product with a spatial extent but no data. • Cut product from source: • On: The product is populated with data from within the defined spatial extent. • Off: The product is not populated with data. If both options are on, the data coverage area is selected and the product is populated with data. |
Procedure
1. Set any necessary options.
2. Click Next.
Product specific M_COVR features with CATCOV=2 will be created automatically where appropriate.
