Portrayals are catalogues of lookup tables, colour tables, symbols and other files that make up the drawing instructions for presentations. Portrayals can be based on:
• IHO or other chart display standards
• custom organizational requirements

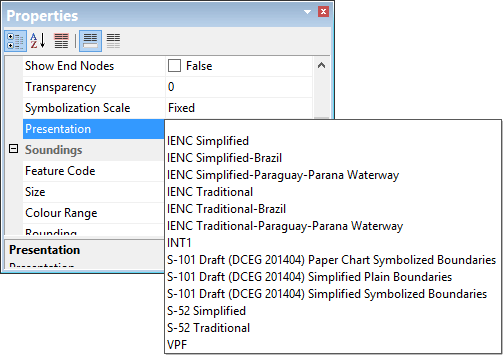

Portrayals are accessed in HPD through the Options dialog box or Properties window.
When a portrayal is selected, the display is refreshed to show features in that portrayal.
Standard IHO portrayals are included in the CARIS installation. These can be grouped into the following categories:
Category | Portrayal |
|---|---|
S-52 | • S-52 Lite • S-52 Simplified • S-52 Traditional • S-52 Differences • S-52 AML • IENC Simplified • IENC Simplified-Brazil • IENC Simplified-Paraguay-Parana Waterway • IENC Traditional • IENC Traditional-Brazil • IENC Traditional-Paraguay-Parana Waterway • Vector Product Format |
Paper charts | • INT1 • INT1-v2.0 • Sample INT1 Dynamic Cartography |
S-100 | • S-101 Draft (DCEG 201404) Simplified Plain Boundaries • S-101 Draft (DCEG 201404) Simplified Symbolized Boundaries • S-101 Draft (DCEG 201404) Paper Chart Symbolized Boundaries |
Portrayals in HPD are managed through the Portrayal Control File. This file links lookup tables, colour files and symbol information to a portrayal.
Custom portrayals can be created and added to the Portrayal Control File – however, files that comprise the portrayal should be created from copies of the default files. Default files should not be modified.
