Quality control tests are used to test database features and external HOB/S-57 files for structure and logical consistency. These files are accessed through Customized QC Tests list in the Validation Checks dialog box.
Ready-to-use QC test files are supplied with HPD. These are located in C:\Program Files\CARIS\HPD\<version>\Modules\ support\Validation2\Validation. This directory is referenced by environment variable uslXqcrulefile.
The following files are included:
Test Name | File Name | Description | Product |
|---|---|---|---|
AML 1.0 Parent Features to Conflate | Parent_Features_to_Conflate_AML_1_0.xml | Find all parent features with childs to conflate. | AML 1.0 |
AML 2.1 Parent Features to Conflate | Parent_Features_to_Conflate_AML_2_1.xml | Find all parent features with childs to conflate. | AML 2.1 |
CLB 1.0 Level 1 - Feature Tests | CLB_1_0_Level1_Features.xml | Feature and attribution tests | CLB 1.0 |
CLB 1.0 Level 3 – Spatial Relationships | CLB_1_0_Level3_SpatialRelations.xml | Spatial relationships checks between features | CLB 1.0 |
CLB 1.0 Level 5 - Metadata (General) | CLB_1_0_Level5_Metadata.xml | General Metadata tests | CLB 1.0 |
CLB 1.0 Level 6 - Product Metadata | CLB_1_0_Level6_ProductMetadata.xml | Product specific metadata tests | CLB 1.0 |
CLB 2.1 Level 1 - Feature Tests | CLB_2_1_Level1_Features.xml | Feature and attribution tests | CLB 2.1 |
CLB 2.1 Level 3 – Spatial Relationships | CLB_2_1_Level3_SpatialRelations.xml | Spatial relationships checks between features | CLB 2.1 |
CLB 2.1 Level 5 - Metadata (General) | CLB_2_1_Level5_Metadata.xml | General Metadata tests | CLB 2.1 |
CLB 2.1 Level 6 - Product Metadata | CLB_2_1_Level6_ProductMetadata.xml | Product specific metadata tests | CLB 2.1 |
DNC Approach CUL Level 1 - Feature Tests | DNC_Approach_CUL_Level1_Features.xml | Feature and attribution tests | DNC Approach CUL |
DNC Approach ECR Level 1 - Feature Tests | DNC_Approach_ECR_Level1_Features.xml | Feature and attribution tests | DNC Approach ECR |
DNC Approach HYD Level 1 - Feature Tests | DNC_Approach_HYD_Level1_Features.xml | Feature and attribution tests | DNC Approach HYD |
DNC Approach IWY Level 1 - Feature Tests | DNC_Approach_IWY_Level1_Features.xml | Feature and attribution tests | DNC Approach IWY |
DNC Approach LIM Level 1 - Feature Tests | DNC_Approach_LIM_Level1_Features.xml | Feature and attribution tests | DNC Approach LIM |
DNC Approach NAV Level 1 - Feature Tests | DNC_Approach_NAV_Level1_Features.xml | Feature and attribution tests | DNC Approach NAV |
DNC Approach OBS Level 1 - Feature Tests | DNC_Approach_OBS_Level1_Features.xml | Feature and attribution tests | DNC Approach OBS |
DNC Coastal CUL Level 1 - Feature Tests | DNC_Coastal_CUL_Level1_Features.xml | Feature and attribution tests | DNC Coastal CUL |
DNC Coastal ECR Level 1 - Feature Tests | DNC_Coastal_ECR_Level1_Features.xml | Feature and attribution tests | DNC Coastal ECR |
DNC Coastal HYD Level 1 - Feature Tests | DNC_Coastal_HYD_Level1_Features.xml | Feature and attribution tests | DNC Coastal HYD |
DNC Coastal IWY Level 1 - Feature Tests | DNC_Coastal_IWY_Level1_Features.xml | Feature and attribution tests | DNC Coastal IWY |
DNC Coastal LIM Level 1 - Feature Tests | DNC_Coastal_LIM_Level1_Features.xml | Feature and attribution tests | DNC Coastal LIM |
DNC Coastal NAV Level 1 - Feature Tests | DNC_Coastal_NAV_Level1_Features.xml | Feature and attribution tests | DNC Coastal NAV |
DNC Coastal OBS Level 1 - Feature Tests | DNC_Coastal_OBS_Level1_Features.xml | Feature and attribution tests | DNC Coastal OBS |
DNC General ECR Level 1 - Feature Tests | DNC_General_ECR_Level1_Features.xml | Feature and attribution tests | DNC General ECR |
DNC General HYD Level 1 - Feature Tests | DNC_General_HYD_Level1_Features.xml | Feature and attribution tests | DNC General HYD |
DNC General LIM Level 1 - Feature Tests | DNC_General_LIM_Level1_Features.xml | Feature and attribution tests | DNC General LIM |
DNC General NAV Level 1 - Feature Tests | DNC_General_NAV_Level1_Features.xml | Feature and attribution tests | DNC General NAV |
DNC General OBS Level 1 - Feature Tests | DNC_General_OBS_Level1_Features.xml | Feature and attribution tests | DNC General OBS |
DNC Harbor CUL Level 1 - Feature Tests | DNC_Harbor_CUL_Level1_Features.xml | Feature and attribution tests | DNC Harbor CUL |
DNC Harbor ECR Level 1 - Feature Tests | DNC_Harbor_ECR_Level1_Features.xml | Feature and attribution tests | DNC Harbor ECR |
DNC Harbor HYD Level 1 - Feature Tests | DNC_Harbor_HYD_Level1_Features.xml | Feature and attribution tests | DNC Harbor HYD |
DNC Harbor IWY Level 1 - Feature Tests | DNC_Harbor_IWY_Level1_Features.xml | Feature and attribution tests | DNC Harbor IWY |
DNC Harbor LIM Level 1 - Feature Tests | DNC_Harbor_LIM_Level1_Features.xml | Feature and attribution tests | DNC Harbor LIM |
DNC Harbor NAV Level 1 - Feature Tests | DNC_Harbor_NAV_Level1_Features.xml | Feature and attribution tests | DNC Harbor NAV |
DNC Harbor OBS Level 1 - Feature Tests | DNC_Harbor_OBS_Level1_Features.xml | Feature and attribution tests | DNC Harbor OBS |
ENC Parent Features to Conflate | Parent_Features_to_Conflate_ENC.xml | Find all parent features with childs to conflate. | ENC 3.1 |
ESB 1.0 Level 1 - Feature Tests | ESB_1_0_Level1_Features.xml | Feature and attribution tests | ESB 1.0 |
ESB 1.0 Level 5 - Metadata (General) | ESB_1_0_Level5_Metadata.xml | General Metadata tests | ESB 1.0 |
ESB 1.0 Level 6 - Product Metadata | ESB_1_0_Level6_ProductMetadata.xml | Product specific metadata tests | ESB 1.0 |
ESB 2.1 Level 5 - Metadata (General) | ESB_2_1_Level5_Metadata.xml | General Metadata tests | ESB 2.1 |
ESB 2.1 Level 6 - Product Metadata | ESB_2_1_Level6_ProductMetadata.xml | Product specific metadata tests | ESB 2.1 |
General ENC Metadata Tests | GeneralENCMetadataTests.xml | General (non S-58) ENC meta data tests. | ENC 3.1 |
General S-57 Feature Tests | GeneralS57FeatureTests.xml | General (non S-58) feature and attribute tests. | ENC 3.1 |
General S-57 Sounding Tests | GeneralS57SoundingTests.xml | General (non S-58) tests for sounding features. | ENC 3.1 |
General S-57 Spatial Relationship Tests | GeneralS57SpatialRelationsTests.xml | General (non S-58) spatial relationship tests. | ENC 3.1 |
Inland ENC 0.6 Level 1 - Feature Tests | IENC_2_1_Level1_Features.xml | Feature and attribution tests | Inland ENC 2.1 |
Inland ENC 0.6 Level 2 - Spatial Tests | IENC_2_1_LeveL2_Spatial.xml | Spatial consistency and validity | Inland ENC 2.1 |
Inland ENC 0.6 Level 3 - Spatial Relationships | IENC_2_1_Level3_SpatialRelations.xml | Spatial relationships checks between features | Inland ENC 2.1 |
Inland ENC 0.6 Level 4 - Feature Relationships | IENC_2_1_Level4_FeatureRelations.xml | Collections and parent/child relationship tests | Inland ENC 2.1 |
Inland ENC 0.6 Level 5 - Metadata (General) | IENC_2_1_Level5_Metadata.xml | General Metadata tests | Inland ENC 2.1 |
Inland ENC 0.6 Level 6 - Product Metadata | IENC_2_1_Level6_ProductMetadata.xml | Product specific metadata and hierarchy tests | Inland ENC 2.1 |
Inland ENC 0.6 Level 7 - European External Files | IENC_2_1_EU_Filenames.xml | European external file naming tests | Inland ENC 2.1 |
Inland ENC 0.6 Level 7 - US External Files | IENC_2_1_US_Filenames.xml | US external file naming tests | Inland ENC 2.1 |
Inland ENC 2.3 Level 1 - Feature Tests | IENC_2_3_Level1_Features.xml | Feature and attribution tests | Inland ENC 2.3 |
Inland ENC 2.3 Level 2 - Spatial Tests | IENC_2_3_LeveL2_Spatial.xml | Spatial consistency and validity | Inland ENC 2.3 |
Inland ENC 2.3 Level 3 - Spatial Relationships | IENC_2_3_Level3_SpatialRelations.xml | Spatial relationships checks between features | Inland ENC 2.3 |
Inland ENC 2.3 Level 4 - Feature Relationships | IENC_2_3_Level4_FeatureRelations.xml | Collections and parent/child relationship tests | Inland ENC 2.3 |
Inland ENC 2.3 Level 5 - Metadata (General) | IENC_2_3_Level5_Metadata.xml | General Metadata tests | Inland ENC 2.3 |
Inland ENC 2.3 Level 6 - Product Metadata | IENC_2_3_Level6_ProductMetadata.xml | Product specific metadata and hierarchy tests | Inland ENC 2.3 |
Inland ENC 2.3 Level 7 - European External Files | IENC_2_3_EU_Filenames.xml | European external file naming tests | Inland ENC 2.3 |
Inland ENC 2.3 Level 7 - US External Files | IENC_2_3_US_Filenames.xml | US external file naming tests | Inland ENC 2.3 |
Inland ENC 2.4 Level 7 - European External Files | IENC_2_4_EU_Filenames.xml | European external file naming tests | Inland ENC 2.4 |
Inland ENC 2.4 Level 1 - Feature Tests | IENC_2_4_Level1_Features.xml | Feature and attribution tests | Inland ENC 2.4 |
Inland ENC 2.4 Level 2 - Spatial Tests | IENC_2_4_LeveL2_Spatial.xml | Spatial consistency and validity | Inland ENC 2.4 |
Inland ENC 2.4 Level 3 - Spatial Relationships | IENC_2_4_Level3_SpatialRelations.xml | Spatial relationships checks between features | Inland ENC 2.4 |
Inland ENC 2.4 Level 4 - Feature Relationships | IENC_2_4_Level4_FeatureRelations.xml | Collections and parent/child relationship tests | Inland ENC 2.4 |
Inland ENC 2.4 Level 5 - Metadata (General) | IENC_2_4_Level5_Metadata.xml | General Metadata tests | Inland ENC 2.4 |
Inland ENC 2.4 Level 6 - Product Metadata | IENC_2_4_Level6_ProductMetadata.xml | Product specific metadata and hierarchy tests | Inland ENC 2.4 |
Inland ENC 2.4 Level 7 - US External Files | IENC_2_4_US_Filenames.xml | US external file naming tests | Inland ENC 2.4 |
LBO 1.0 Level 1 - Feature Tests | LBO_1_0_Level1_Features.xml | Feature and attribution tests | LBO 1.0 |
LBO 1.0 Level 5 - Metadata (General) | LBO_1_0_Level5_Metadata.xml | General Metadata tests | LBO 1.0 |
LBO 1.0 Level 6 - Product Metadata | LBO_1_0_Level6_ProductMetadata.xml | Product specific metadata tests | LBO 1.0 |
LBO 2.1 Level 1 – Feature Tests | LBO_2_1_Level1_Features.xml | Feature and attribution tests | LBO 2.1 |
LBO 2.1 Level 5 - Metadata (General) | LBO_2_1_Level5_Metadata.xml | General Metadata tests | LBO 2.1 |
LBO 2.1 Level 6 - Product Metadata | LBO_2_1_Level6_ProductMetadata.xml | Product specific metadata tests | LBO 2.1 |
MFF 1.0 Level 1 – Feature Tests | MFF_1_0_Level1_Features.xml | Feature and attribution tests | MFF 1.0 |
MFF 1.0 Level 5 - Metadata (General) | MFF_1_0_Level5_Metadata.xml | Metadata tests | MFF 1.0 |
MFF 1.0 Level 6 - Product Metadata | MFF_1_0_Level6_ProductMetadata.xml | Product specific metadata tests | MFF 1.0 |
MFF 2.1 Level 1 – Feature Tests | MFF_2_1_Level1_Features.xml | Feature and attribution tests | MFF 2.1 |
MFF 2.1 Level 5 - Metadata (General) | MFF_2_1_Level5_Metadata.xml | Metadata tests | MFF 2.1 |
MFF 2.1 Level 6 - Product Metadata | MFF_2_1_Level6_ProductMetadata.xml | Product specific metadata tests | MFF 2.1 |
RAL 1.0 Level 1 - Feature Tests | RAL_1_0_Level1_Features.xml | Feature and attribution tests | RAL 1.0 |
RAL 1.0 Level 4 - Feature Relationships | RAL_1_0_Level4_FeatureRelations.xml | Collections and parent/child relationship tests | RAL 1.0 |
RAL 1.0 Level 5 - Metadata (General) | RAL_1_0_Level5_Metadata.xml | General Metadata tests | RAL 1.0 |
RAL 1.0 Level 6 - Product Metadata | RAL_1_0_Level6_ProductMetadata.xml | Product specific metadata tests | RAL 1.0 |
RAL 2.1 Level 1 - Feature Tests | RAL_2_1_Level1_Features.xml | Feature and attribution tests | RAL 2.1 |
RAL 2.1 Level 5 - Metadata (General) | RAL_2_1_Level5_Metadata.xml | General Metadata tests | RAL 2.1 |
RAL 2.1 Level 6 - Product Metadata | RAL_2_1_Level6_ProductMetadata.xml | Product specific metadata tests | RAL 2.1 |
S-58 6.1 Level 1 – Feature Tests | S58_Level1_Features.xml | Feature and attribution tests | ENC 3.1 |
S-58 6.1 Level 2 – Spatial Tests | S58_LeveL2_Spatial.xml | Spatial consistency and validity | ENC 3.1 |
S-58 6.1 Level 3 – Spatial Relationships | S58_Level3_SpatialRelations.xml | Spatial relationships checks between features | ENC 3.1 |
S-58 6.1 Level 4 – Feature Relationships | S58_Level4_FeatureRelations.xml | Collections and parent/child relationship tests | ENC 3.1 |
S-58 6.1 Level 5 – Metadata (General) | S58_Level5_Metadata.xml | General Metadata tests | ENC 3.1 |
S-58 6.1 Level 6 – Product Metadata | S58_Level6_ProductMetadata.xml | Product specific metadata and hierarchy tests | ENC 3.1 |
S-58 6.1 Level 7 – Catalogue Tests | S58_Level7_CatalogueValidation.xml | Catalogue tests | ENC 3.1 |
SBO 1.0 Level 4 – Feature Relationships | SBO_1_0_Level4_FeatureRelations.xml | Collections and parent/child relationship tests | SBO 1.0 |
SBO 1.0 Level 5 - Metadata (General) | SBO_1_0_Level5_Metadata.xml | General Metadata tests | SBO 1.0 |
SBO 1.0 Level 6 - Product Metadata | SBO_1_0_Level6_ProductMetadata.xml | Product specific metadata tests | SBO 1.0 |
SBO 2.1 Level 4 - Feature Relationships | SBO_2_1_Level4_FeatureRelations.xml | Collections and parent/child relationship tests | SBO 2.1 |
SBO 2.1 Level 5 - Metadata (General) | SBO_2_1_Level5_Metadata.xml | General Metadata tests | SBO 2.1 |
SBO 2.1 Level 6 - Product Metadata | SBO_2_1_Level6_ProductMetadata.xml | Product specific metadata tests | SBO 2.1 |
You can create custom quality control tests or divide existing tests into smaller tests, but all must follow the same structure and use the functions and filters described in this chapter.

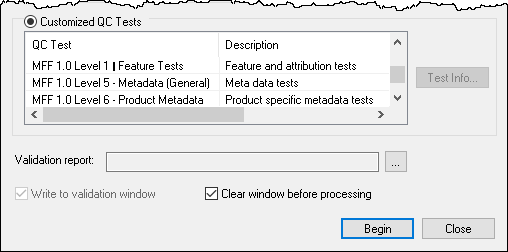

Place your custom tests in the folder defined by the Customized QC Tests option.
QC tests that are located in multiple directories can be displayed in the Validation Checks dialog box using a control file. The control file is referenced by environment variable uslXqccontrolfile. This variable is not available when HPD is installed. You will have to create it in the Registry Editor.
The control file points to folders. In each folder, you must have at least one QC tests.
Save only QC test files in the folders referenced by uslXqccontrolfile.
Do not reference the same file with both uslXqcrulefile and uslXqccontrolfile.
The control file is in XML format. It uses the following syntax.
<?xml version="1.0" encoding="UTF-8" ?> <QCControlFile Version="1.0"> <QCInfo Description="ENC QC Tests"> <Folder Name="C:\CARIS\HPD\SourceEditor\2.5Beta\System\QC\enc" /> </QCInfo> <QCInfo Description="DNC QC Tests"> <Folder Name="C:\CARIS\HPD\SourceEditor\2.5Beta\System\QC\dnc" /> </QCInfo> <QCInfo Description="AML QC Tests"> <Folder Name="C:\CARIS\HPD\SourceEditor\2.5Beta\System\QC\aml" /> </QCInfo> </QCControlFile> |
See the table below for description of elements and attributes.
Attributes | Description |
|---|---|
| |
| Version of the QC control file. This is set to 1.0 |
| |
| Name of the QC test |
| |
| Full path for the folder containing QC files. |
