Open Vessel Editor

Use Vessel Editor to create HIPS vessel files, and to edit sensor offsets and uncertainty estimates in those files. Vessel Editor is launched from the HIPS and SIPS interface.

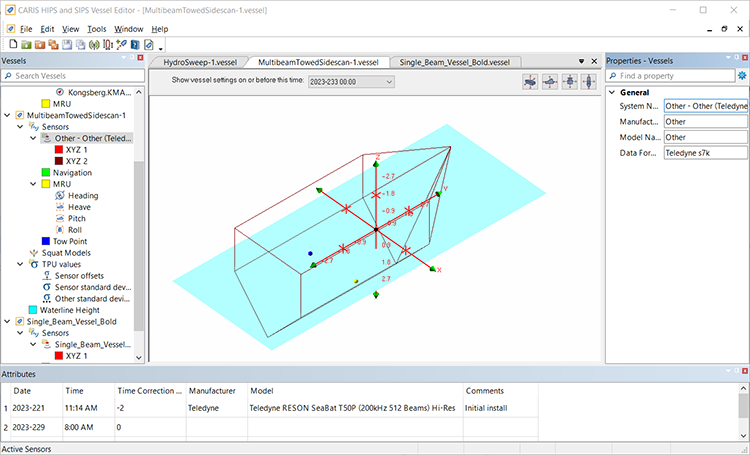

The image below displays a vessel file and a vessel outline in Vessel Editor.

Procedure

1. Select the Vessel Editor command.

Vessel Editor appears in a new window.

Alternatively, if the vessel file is stored in a HIPS file, you can open it in Vessel Editor directly from the application:

1. In the Project window, expand Data Sources, the HIPS file, and Vessels.

2. Right-click on the vessel and select Vessel Editor.
