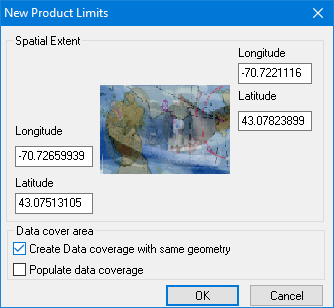

Spatial Extent

The spatial extent is taken by default from the geographic area visible in the Display window. You can change this if necessary by editing the Latitude and Longitude fields.

Data cover area

Select the method of defining the data cover area.

Create data coverage with same geometry:

• On: Create a data cover area that is the same as the spatial extent. Only tiles that touch or are within the data coverage area will be generated.

• Off: No data cover area will be created You must define the product data cover area or areas manually after the attributes are defined.

Populate data coverage:

• On: The tile definitions are created automatically after the attributes are defined.

• Off: No tile definitions are created. You must create them manually.

You can select one or both methods, or neither.

Background Colour

$colbk

The background colour for the raster images. The default (blank) uses Alpha (transparent) or white, if the file format does not have an alpha channel. If you require a different colour for the background, you can use one of the colour tokens from the palette that is assigned to the selected portrayal (presid).

Type the colour token name in the text box.

Optional.

Compilation Scale of data

COMPSC

The scale at which the data was originally compiled. This influences the output size of text and symbols in the output tiles.

Type a scale denominator in the box.

Mandatory.

Coordinate Reference System

CRS

The coordinate reference system for the output images.

Click browse (...) and select a coordinate reference system from the Select Coordinate Reference System dialog box.

Mandatory.

Dots Per Inch

DPI

The dots per inch (DPI) of the output images.

Type a value.

Mandatory.

Edition

EDITION

The edition of the product.

Type a number or accept the default.

Mandatory.

Export Folder

EXPFLD

The folder where all of the images in the tiled raster product are created.

Type a path or click browse (...) to display a Find Folder dialog box.

Mandatory.

Fractional Display

frcdsp

True: Soundings are displayed with fractions instead of decimal points.

False: Soundings are displayed with decimal points.

Mandatory. Default is False.

Name

NAME

A name for the product. The name is case-sensitive.

Type the name in the box.

Mandatory.

Presentation Identifier

presid

The ID of the portrayal used for symbolization.

Select from the list.

Mandatory.

Product Edition Number

EDINUM

Type a value or accept the default (1).

Optional.

Product Group

PRODGRP

The product group for the images.

Mandatory. Default is 1 (HPDProducts).

Product Update Number

UPDNUM

The number of the current update of the product.

Type the number in the box.

Optional. Default is 0 (no updates).

Sounding Feature Code

sdgfc

The feature code used for soundings in the source data.

Type a feature code.

Optional.

Sounding Rounding

SNDRND

The rounding method used for sounding values.

Select from the list.

Optional. The default is Default Truncated.

Sounding Size in Millimetres

sdgsz

The size of the soundings in millimetres.

Mandatory. Default is 1.45.

Tile Anti-Aliasing

$tlali

True: The output images will have anti-aliasing applied.

False: The output images will not have anti-aliasing applied.

Optional. Default is true.

Tile Buffer

$tlbuf

A buffer around a tile. This helps to ensure that features that cross the tile but whose origin is outside the boundary make it into the image.

Type a value in metres.

Mandatory.

Tile Format

$tlfmt

The format of the output images. This includes file types and compression, if any.

Select from the list.

Mandatory.

Tile Origin X

$tlorx

A reference point used as the tile origin.

This allows precise positioning of tiles so that they can align with other products. If you create multiple products with the same origin values and whose tile sizes are exact multiples, the tiles in both products will fit neatly together.

No tiles are necessarily drawn at this point because tiles that do not cross the data cover area or areas are not created. For example, if you set the start point for the tiles outside the area of interest (if you use a national grid system, for example), the tiles will only be generated where they happen to touch the data cover areas.

Type a value in the field.

Mandatory.

Tile Origin Y

$tlory

A reference point used as the tile origin.

This allows precise positioning of tiles so that they can align with other products. If you create multiple products with the same origin values and whose tile sizes are exact multiples, the tiles in both products will fit neatly together.

No tiles are necessarily drawn at this point because tiles that do not cross the data cover area or areas are not created. For example, if you set the start point for the tiles outside the area of interest (if you use a national grid system, for example), the tiles will only be generated where they happen to touch the data cover areas.

Type a value in the field.

Mandatory.

Tile Size X

$tlszx

The size of each tile.

Type a value in metres in the field.

Mandatory.

Tile Size Y

$tlszy

The size of each tile.

Type a value in metres in the field.

Mandatory.

Update Number

VERSION

The update version number.

Optional.Default is 0.

Usage Name

USGNAM

The usage that contains the data from which the tiles will be created.

The order in which you select the usages has no effect on the rendering of the exported tiles. The order in which the usages are applied is the default order used when loading the same usages in Product Editor.

Click browse (...) and select one or more usages from the list.

Mandatory.
