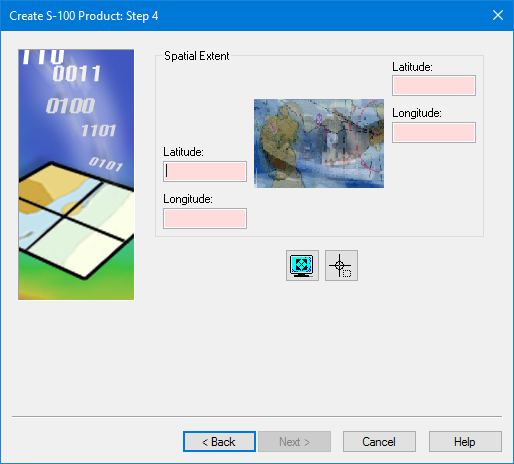

Step 4: Product Extents

The geographic extent of the product. Type the extent directly or grab it from an external file.

Command	Button	Description
Set manually		Type the coordinates in the Spatial Extent fields using one of the following formats: • `Degrees-Minutes-Seconds` with N, S, E, and W. For example, `25-35-03W.` • `Degrees-Minutes` using decimal minutes with N and W. For example, `25-35.25W.` • `Decimal Degrees` with a minus sign (-) for west or south. For example, `-25.35`.
Use current cover		Use the current extent of the Display window. Make sure that the Display window shows only the area required for the product.
Digitize boundary		Digitize a box to represent the extent. A cross hair cursor is displayed. Press and hold the mouse button and drag across the area where you want to create the product.

Command

Button

Description

Set manually

Type the coordinates in the Spatial Extent fields using one of the following formats:

• Degrees-Minutes-Seconds with N, S, E, and W. For example, 25-35-03W.

• Degrees-Minutes using decimal minutes with N and W. For example, 25-35.25W.

• Decimal Degrees with a minus sign (-) for west or south. For example, -25.35.

Use current cover

Use the current extent of the Display window. Make sure that the Display window shows only the area required for the product.

Digitize boundary

Digitize a box to represent the extent. A cross hair cursor is displayed. Press and hold the mouse button and drag across the area where you want to create the product.
