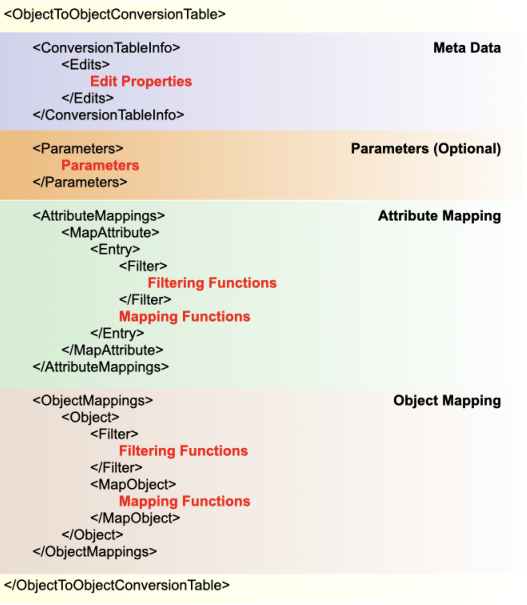

Overview of the mapping file structure.
The <ObjectToObjectConversionTable> tag is the root tag for all other elements in the file.
<ObjectToObjectConversionTable Version="1.0" FromType="CARIS" ToType="GO"> |
The tag contains the Version attribute. This is the version number for the file format.
Values for the FromType and ToType attributes must also be set. The FromType attribute is source data that is being imported. There are five FromType values, see the following table.
The ToType attribute is the data format to which the source is being mapped. The attribute is always set to GO (stand-alone HOB, HPD workspace, etc.)
Type | Description |
|---|---|
GO | Data from any GO-based source such stand-alone HOB files, HPD workspace, feature layer, etc. |
CARIS | Data from a CARIS DES file. |
GML | Data from a GML file (without OGR) |
DGN | Data from a DGN file |
CATALOG | Data from a source with an object catalogue that is either loaded with the file or stored in memory |
