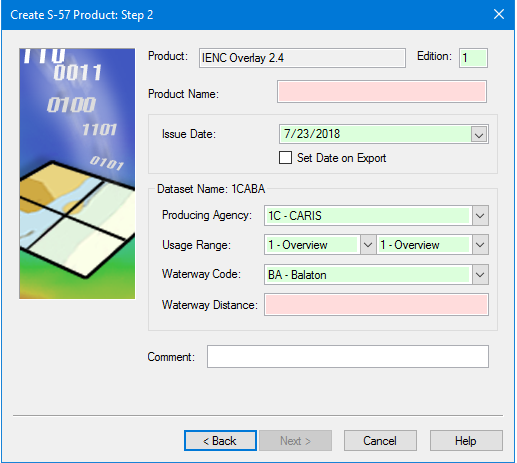

Product

[Read only] The product type selected in the previous step.

Edition

The start number for editions. This defaults to 1. Change this if necessary by typing a new number in the box.

Product Name

The name for the product. The product name does not have to follow the standard ENC naming convention. Type in the box.

Issue Date

• Issue Date: The date for the product. Select a date by clicking the down arrow to display a calendar.

• Set Date on Export:

• On: Apply the export date to the product. The Issue Date field is inactive.

• Off: Apply the date in the Issue Date field.

Dataset Name

The name of the dataset is a combination of the options inside the Dataset Name frame. The name is displayed in the frame title as you select the options.

• Producing Agency: A two-digit code indicating the country of origin. Select from the list.

• Usage Range: The scale of the second usage must be equal to or greater than the scale of the first usage. Select one usages from each of the two lists.

• Waterway Code: A code describing the waterway. Select from the list.

• Waterway Distance: in metres. This must have a minimum of three digits. For example, 14 kilometres is 014.

Comment

Other information. Type in the box.
