CARIS BASE Editor : Engineering Analysis : Commands : Change Status


Change Status



Menu

Tools > Engineering Analysis > Shoals > Change Status

Tool

The Change Status command is used to change the status of registered shoal boxes. Shoals are either Active or Cancelled.

• Active shoals are currently relevant and need to be considered during navigation.

• Cancelled shoals are historical and not a current hazard.

To change the status of a shoal, it must be registered in the database. See Register in Database for more information.

The status of a shoal box is identified by a number, which can be viewed in the Attributes window under the Status attribute (shlsta). This number is defined in your shoal record associations file (for example, Active = 1, Cancelled = 2).

Related commands:

• Calculate Clearances

• Group Areas

• Classify Boxes

• Import from Database

• Detect Shoals

• Merge Boxes

• Determine Reference Features

• Register in Database

• Display Depth Annotations

• Reorient Boxes

• Edit Record Association File

Interface

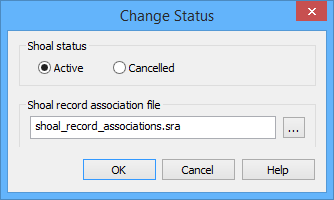

The Changes Status command uses the following dialog box.

Option

Description

Shoal status

The status to assign to the selected shoal boxes.

Shoal record association file

The shoal record association file from which to acquire the status values to populate in the Status attribute.

Procedure

1. Select the Shoal Boxes layer in the Layers window.

2. Select the shoal boxes in the Display window for which you want to change the status.

3. Select the Change Status command.

The Change Status dialog box is displayed.

4. Select a Shoal status option.

5. Click Browse (...) to select a Shoal record association file.

6. Click OK.

The status of the selected shoal box(es) is updated.
