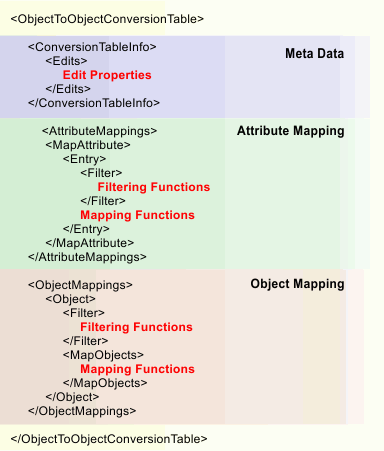

Overview of the mapping file structure.
<ObjectToObjectConversionTable> is the root tag for all elements in the file.
<ObjectToObjectConversionTable Version="1.0" FromType="GO" ToType="GO"> |
The Version attribute is the version number for the file format.
Values for the FromType and ToType attributes must also be set. The FromType attribute is source data that is being imported. There are five FromType values, see the following table.
Type | Description |
|---|---|
GO | Data from any GO-based source such stand-alone HOB files, feature layers, etc. |
CARIS | Data from a CARIS DES file. |
GML | Data from a GML file (without OGR) |
DGN | Data from a DGN file |
CATALOG | Data from a source with an object catalogue that is either loaded with the file or stored in memory |
