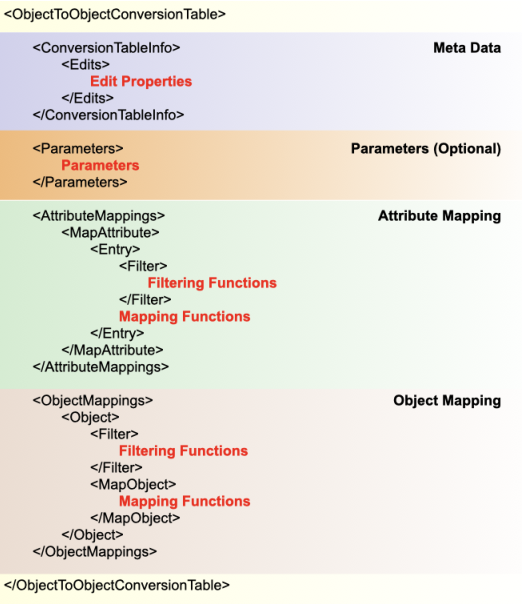

Overview of the mapping file structure.
The <ObjectToObjectConversionTable> tag is the root tag for all other elements in the file.
<ObjectToObjectConversionTable Version="1.0" FromType="CARIS" ToType="GO"> |
The tag contains the Version attribute. This is the version number for the file format.
Values for the FromType and ToType attributes must also be set:
• FromType attribute is source data that is being imported. There are five FromType values, see the following table.
• ToType attribute is the data format to which the source is being mapped. The attribute is always set to GO (stand-alone HOB, HPD workspace, etc.)
Type | Description |
|---|---|
GO | Data from any GO-based source such stand-alone HOB files, HPD workspace, feature layer, etc. |
CARIS | Data from a CARIS DES file. |
GML | Data from a GML file (without OGR) |
DGN | Data from a DGN file |
CATALOG | Data from a source with an object catalogue that is either loaded with the file or stored in memory |
