CARIS BASE Editor : S-57 Composer : Create S-57 Product : Step 5: Exchange Set Creation : All other products


All other products

Interface

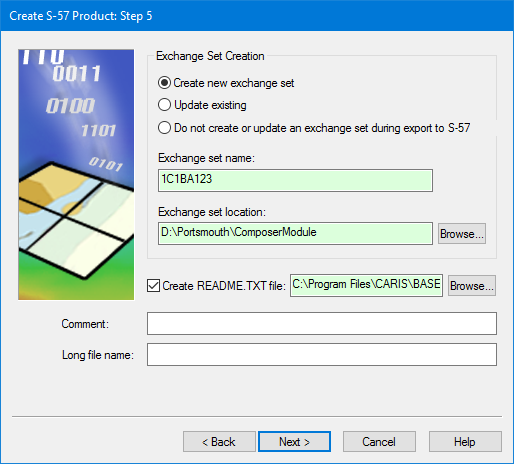

Exchange set dialog box for all other products:

Option

Description

Exchange Set Creation

Create new exchange set: Create an exchange set. You must define a location and name

Update existing: Update an existing exchange set by adding the new product to it. You must define the location and name.

Do not create or update an exchange set: Do not create an exchange set.

Exchange set name: The name of the exchange set.

Exchange set location: The location for the exchange set.

Create README.TXT file

The README.TXT file is an optional text file which contains information about the exchange set, such as name, location, content, and other general information of help to end users. This can be edited using a text editor.

On: README.TXT is created.

Off: No README.TXT is created.

Comment

Additional information. Type in the box.

Long file name

[Optional] A longer, more descriptive name for the exchange set. Type in the box.

Procedure

1. Define any mandatory fields.

2. Define any other fields required by your agency.

3. Click Next.
