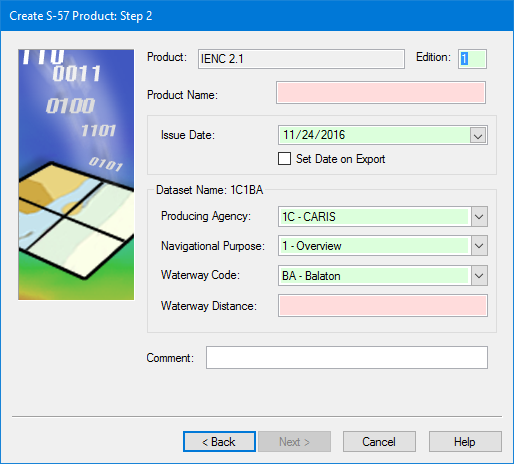

Product

[Read-only] The product type selected in Step 1.

Edition

[Mandatory] The edition number of the product. Default is 1. Type a new number if necessary.

Product Name

[Mandatory] A name for the product. This does not have to follow the standard naming convention.

Issue Date

[Mandatory] The issue date for the product. Defaults to the current date. Select another date from the calendar Or enable Set Date on Export to assign the export date to the product.

Dataset Name

[Mandatory] A name for the dataset which is built from the fields in the frame:

• Producing Agency: A two-character code that designates the hydrographic agency that owns the data. Select from the list.

• Navigational Purpose: The scale range of the product. Select from the list.

• Waterway Code: A code used to identify the waterway. Select from the list.

• Waterway Distance: The length of the selected waterway. This has a minimum of three digits. For example, 14 km would be entered as 014.

Comment

Additional information. Type in the box.
