Motion Sensors

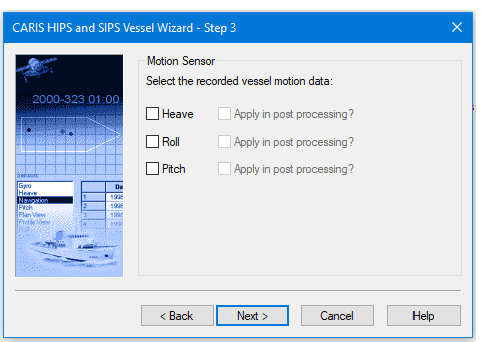

This dialog box determines which attitude sensors are displayed in the HIPS Vessel File.

1. Create entries for any (or all) of the following sensors by clicking the appropriate check box:

• Heave

• Roll

• Pitch

2. Select the Apply in Post Processing option to apply the selected motion data during the Merge process or during Sound Velocity Correction.

3. Click Next.
