Export Coverage to HTF: Step 3

The third step of the Export Coverage to HTF wizard is used to map attributes from the source coverage to the HTF attributes.

Interface

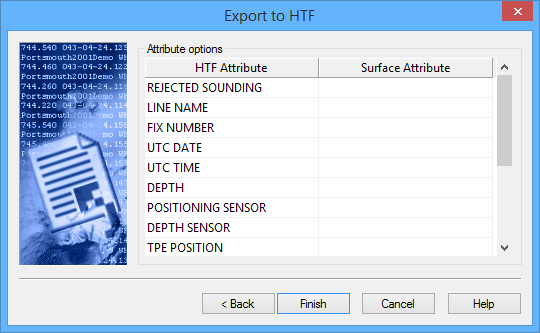

The following is the third step the Export Coverage to HTF wizard.

Option	Description
Attribute Options	The HTF Attribute column contains the attributes that can be populated in the resulting HTF file. The Surface Attribute column contains the band values that can be mapped to the HTF attributes. 1. Select an attribute in the HTF Attribute column. 2. Expand the drop-down list for that attribute in the Surface Attribute column. 3. Select a band value from the list to map to the current HTF attribute.

Option

Description

Attribute Options

The HTF Attribute column contains the attributes that can be populated in the resulting HTF file. The Surface Attribute column contains the band values that can be mapped to the HTF attributes.

1. Select an attribute in the HTF Attribute column.

2. Expand the drop-down list for that attribute in the Surface Attribute column.

3. Select a band value from the list to map to the current HTF attribute.

Procedure

1. Expand the drop-down lists and select a surface attribute for each HTF attribute that should be mapped in the output file.

2. Click Finish.

The export is run.
