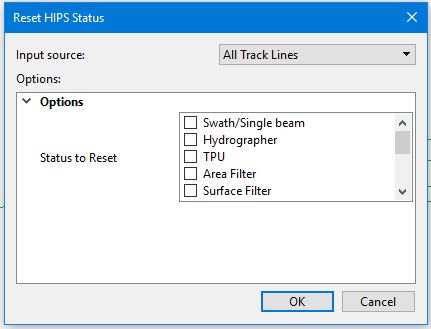

Input Source

From the drop down list, select the input data to be reset. Select either:

• All Track Lines - reset will apply to all open track lines. This is the default setting.

• Selected Track Lines - reset will apply to those track lines individually selected before opening the Reset HIPS Status dialog box.

• A specific named track lines layer from either the Layers or Active Track Lines window.

Options

Status to Reset

Select any of the following types of rejected data to reset to Accepted status:

Rejected by Swath Editor or Single Beam Editor

Any sounding data that was rejected in Swath or Single Beam Editor, or by the Swath or Single Beam filters.

Rejected by Hydrographer

Any sounding data that was interactively rejected in Subset Editor.

Rejected by TPU

Data that was rejected during Total Propagated Uncertainty (TPU) filtering.

Rejected by Area Filter

Data that was rejected during surface cleaning using the Area Filter.

Rejected by Surface Filter

Data that was rejected during CUBE filtering.

Rejected by Depth Filter

Data that was rejected by the depth filter during import.

Rejected by Disabled Beam

Data that was rejected due to the disabled beam flag during import.

Rejected with Navigation interpolation

Any navigation data rejected with interpolation in Navigation Editor.

Rejected with Navigation Break Interpolation

Any navigation data rejected without interpolation in Navigation Editor.

Rejected with Attitude Interpolation

Any attitude data that was rejected with interpolation in Attitude Editor.

Rejected Attitude Break Interpolation

Any attitude data that was rejected without interpolation in Attitude Editor.
