This step of the Import Wizard is used to define FAU-specific settings.
Interface

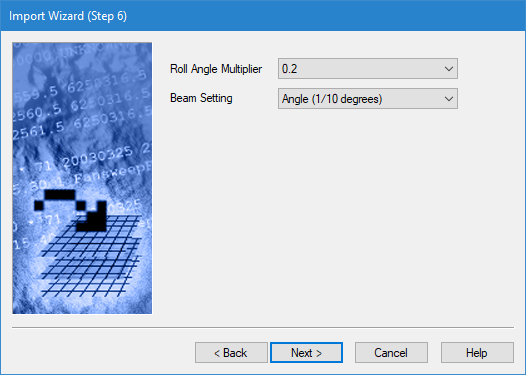

The FAU Options step of the Import Wizard is shown below.
Option | Description |
Roll Angle Multiplier | A numeric multiplier used to scale roll angle values. FAU files use either a multiplier of 0.2 or 0.1, as appropriate. After a multiplier has been applied, roll angle values are in units of degrees. The default value is 0.2. |
Beam Setting | Specify whether values are saved in the FAU file as beam angles or beam numbers. By default, it is assumed that the beam angles are stored in the file. These values are used to populate the new Launch_Angle band, if the Launch_Angle band is selected to be included in the output. |
Procedure
1. Select an option from the Roll Angle Multiplier drop-down list.
2. Select an option from the Beam Setting drop-down list.
3. Click Next.
