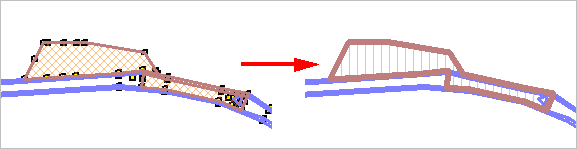

The New Supersurface command is used to create a single surface from two or more existing adjacent surfaces.
Operations performed on a supersurface are also applied to the sub-surfaces from which it was created.
Interface

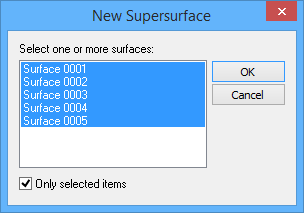

The New Supersurface command uses the following dialog box.
Option | Description |
Select one or more surfaces | The reference model surfaces from which to create the new supersurface. 1. Press and hold the <Ctrl> key, then click the relevant surfaces in the list. |
Only selected items | Enable this option to limit the list of available surfaces to only the reference model surfaces that were selected when the command was launched. |
Procedure
1. In the Layers window, select the layer displaying reference model surface features.
In order to select reference model features other than templates, you must have a layer that includes the desired feature type(s) in its display filter. |
2. Select the (New Feature) Supersurface command.
The New Supersurface dialog box is displayed.
3. Select two or more surfaces.
4. Click OK.
The new supersurface is created.
