Option

Description

Source

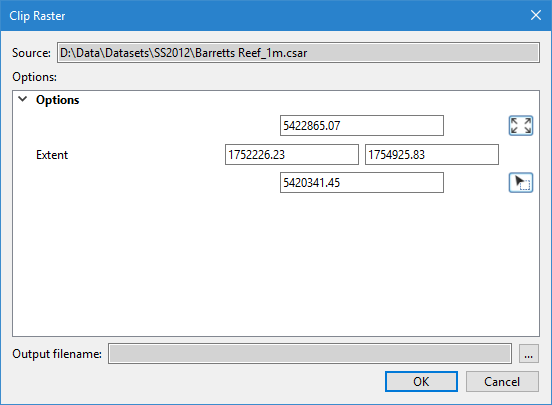

The input data for the process. The Source is defined by the surface that was selected at the time the command was initiated. This field cannot be changed.

Extent

The extents of the input raster to be exported to a new raster coverage. There are three possible methods for defining the extents:

• Manually define a bounding box by entering the coordinates at the middle of the left, right, top and bottom sides of the bounding box and, when available, specify the unit of measure for these values.

• Click the Use screen extents button to use the full extents of the current view in the Display window.

• Click the Pick from screen button and use the mouse to drag a bounding box around the data to be included in the extents.

The extents of the current view are selected by default. The values in the fields will be updated automatically if the extents are changed using either of the button options.

These values are entered in the coordinate type and unit of measure of the coordinate reference system of the view, not the view settings defined in Tools > Options.

Output filename

The name and location for the output file.
