Option

Description

Source

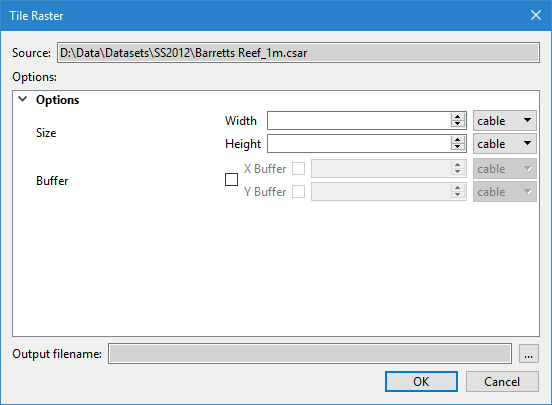

The input data for the process. The Source is defined by the surface that was selected at the time the command was initiated. This field cannot be changed.

Size

The size of the tiles to be exported.

1. Use the Up or Down arrow buttons or manually enter a value for the Width and Height of each tile.

2. Select the unit of measure for each measurement.

Buffer

The size of a buffer around exported tiles. X Buffer defines the size of the buffer on the left and right of each tile. Y Buffer defines the size of the buffer on the top and bottom of each tile.

1. Click the check box to enable the Buffer fields.

2. Click the check box for X Buffer to enable those fields.

3. Specify a size and select a unit of measure for the X Buffer.

4. Click the check box for Y Buffer to enable those fields.

5. Specify a size and select a unit of measure for the Y Buffer.

Output filename

The name and location for the resulting tiles. The tiles are named based on the provided output name, with the row and column of the tile encoded into the name, such as outputfile2x3 for the tile in the second row and third column.
