Menu | File > Import > Variable Resolution BAG |
Creates a CSAR file in variable resolution format from an input variable resolution surface.
Currently, the input is a BAG raster with variable resolution refinement grids. BAG 1.6.0 was the first version to introduce support for variable resolution refinement grids.
Related commands:
• Export Variable Resolution to BAG
• New Variable Resolution Surface
Interface

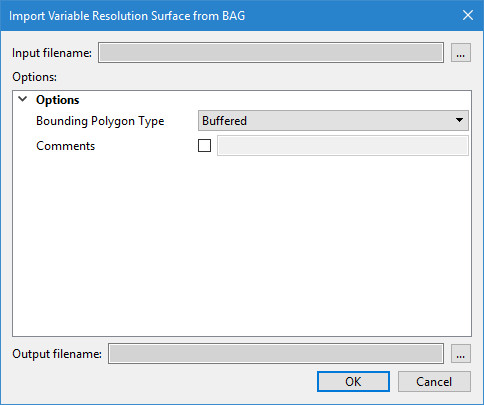

The Import Variable Resolution BAG command uses the following dialog box:
Option | Description |
Input filename | Select the BAG file variable resolution surface to import. |
Bounding Polygon Type | Specify the type of bounding polygon to generate. 1. Select either Buffered or Convex. Default setting is Buffered. |
Comments | Enable the check box to enter comments in the field and enter any necessary text. |
Output filename | Specify the name of the output variable resolution surface or point cloud in CSAR format. |
Procedure
1. Select the Import Variable Resolution BAG command.
The Import Variable Resolution Surface from BAG dialog box is displayed.
2. Click the browse button (...) and select a variable resolution BAG surface.
3. Set any other necessary options.
4. Click the browse button (...) and set the name of the output CSAR file.
5. Click OK.
A new variable resolution surface is created from the BAG data.
