Mapping DGN Objects


Meta Data
Object Mapping

Features from DGN files can imported using the mapping file called DGNRuleFile.xml. This is located in the RuleFiles folder in the System directory. You may want to refer it file when reviewing this section.

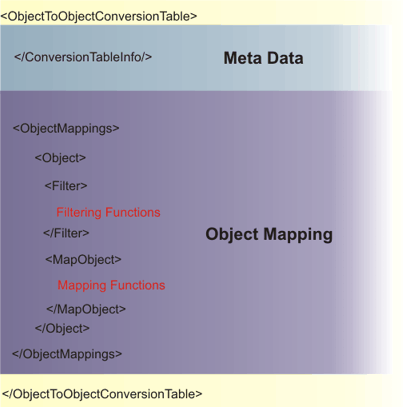

The following diagram provides an overview of the DGN mapping file structure.

The <ObjectToObjectConversionTable> contains the Version attribute. The Version is the version number for the file.
