EDGETECH JSF Options

EdgeTech JSF format, as stored in *.jsf files, can store bathymetry and side scan data.

Interface

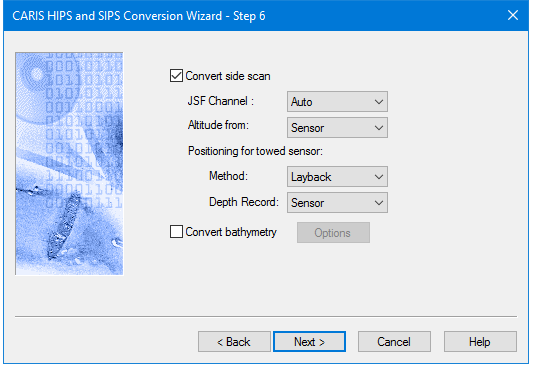

Options for converting Edgetech JSF data to HIPS are displayed in this dialog box.

Option

Description

Convert Side Scan

The check box is enabled by default, to enable conversion of side scan data.

To omit conversion of side scan data, de-select the check box. This will also disable the options listed below it.

JSF Channel

Select the frequency channel to convert. Auto is the default setting

• None: no side scan is converted

• Auto: converts low frequency if it exists

• High: High frequency

• Low. low frequency

Attitude from:

• Select Sensor or Discover-2. Sensor is the default setting

Positioning for towed sensor

• Method: Select Layback or Cable out. Layback is the default setting.

• Depth record: Select from Sensor or Discover-2. Sensor is the default setting.

Convert Bathymetry

To convert JSF bathymetry data,

1. Select the Convert bathymetry check box.

Procedure

1. Set options.

2. Click Next to continue conversion process.
