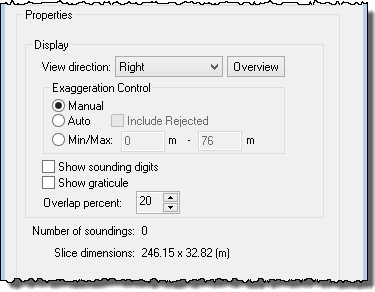

The Properties for the 2D View are shown when 2D is selected in the Data list of the Subset Control panel.
Option | Description |
Display | |

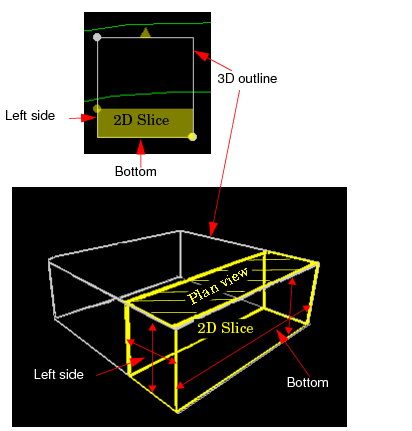

View direction The data in both 2D and 3D view in Subset Editor can be centred a sounding. Click on the sounding with the middle-mouse button to shift the subset so that the sounding is centred in the View window. Return the data to the original direction and orientation using the Overview button on the Subset Control panel. | Sets the view perspective to: • Right: view data from the right side of the slice box • Top: view data from the upper side of the slice box • Left: view data from the left side of the slice box • Bottom: view data from the lower edge of the slice box • Plan: view data looking down into the box from above • Automatic: the perspective is determined by the dimensions of the 2D Slice Box. • If the height of the slice box is greater than the width, the view is automatically shown from the Left side. • If the width of the slice box is greater than the height, the view is automatically shown from the Bottom. |
Overview | The data in both 2D and 3D view in Subset Editor can be centred a sounding. Click on the sounding with the middle-mouse button to shift the subset so that the sounding is centred in the View window. Use the Overview button to return the data to the original view and orientation. |
Exaggeration Control | Vertical exaggeration is the ratio of the vertical scale versus the horizontal scale. |

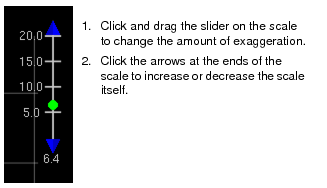

Manual | Set vertical exaggeration with the scale in the 2D View.
|
Auto | Sets the scale automatically by using all visible depths. |
Include Rejected | When Auto Exaggeration mode is selected, the Include Rejected option is activated. This will automatically use rejected data to set a minimum and maximum sounding depth to display in the 2D View. |
Min/Max | Manually set a minimum and maximum sounding depth to display in the 2D View. |
Show Sounding Digits | Display sounding values in the 2DView.. |
Show Graticule | Display a grid with values representing distance and depth along the axes. These values are set according to the setting for View direction. • If the Right/Top/Left/Bottom options are selected, both the depth and distance are shown. • If the Plan option is selected, distance in both directions is displayed. |
Properties | number of soundings in the 2D slice |
Properties | dimensions of the slice (height x width) in the default units |
Overlap Percent | Select a percentage by which the 2D Slice box will overlaps the previous area in the 2D View when the box is moved. (The higher the percentage is, the larger the amount of overlap and the greater the number of slice views within the subset.) |
