Create SIPS Mosaic using Backscatter

Create a mosaic using the SIPS Backscatter engine to process multibeam backscatter data referenced by HIPS data.

This engine processes multibeam backscatter, employing such corrections for backscatter intensity as TVG, transmit and receiver gain, and beam pattern correction.

This processing engine will directly read Reson *. s7k, Hypack *.hsx/*.7k and Kongsberg *.all files to create a beam pattern from the beam value stored or extracted from the time series datagrams.

Related commands:

Create SIPS Mosaic using Side Scan

Create Mosaic using GeoCoder

Interface

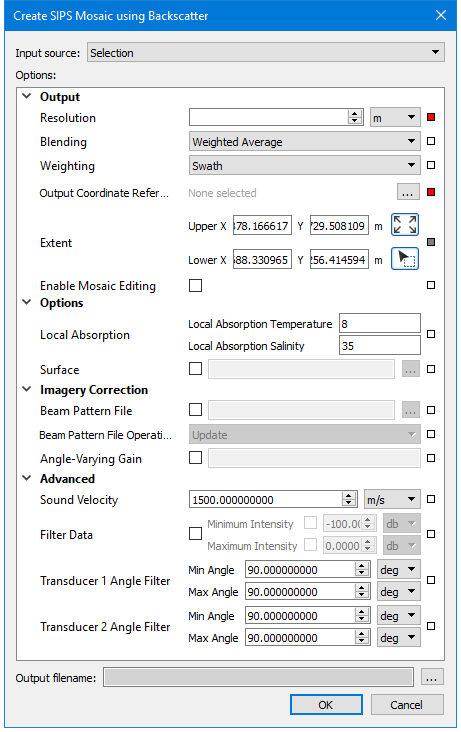

A new mosaic using backscatter data is created using the Create SIPS Mosaic using Backscatter dialog box.

Procedure

1. Zoom/pan to display the extents of the data that you want included in the mosaic.

2. Select one or more track lines. If no track lines are selected, the mosaic will be created using on all open track lines.

3. Select the New SIPS Mosaic using Backscatter command.

The Create Mosaic dialog box is displayed.

4. Set the Input Source for the mosaic.

5. Set a Resolution and a Coordinate Reference System for the mosaic.

6. Enter Options, Imagery Corrections and Advanced options as they relate to the type of mosaic engine being used.

See SIPS Mosaic Options for details on settings.

7. Click Browse and set name and path for the output mosaic.

8. Click OK.

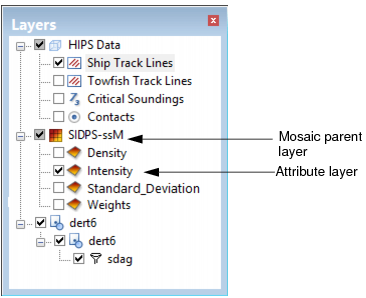

The new mosaic is displayed in the Display window and is listed in the Layers window.
