Select Contact

The Select Contact tool is used to select point or line contact(s) in the Side Scan View (waterfall) view.

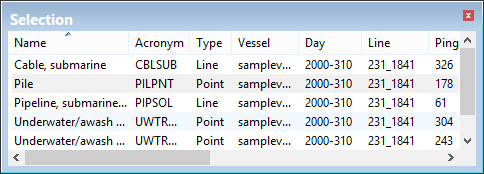

When a number of contacts are listed in the Selection window, the superselected contact will be highlighted in the waterfall view.

As well, the coordinates of the superselected contact are displayed in the Coordinates window.

Procedure

1. To select a single contact, click on or drag a selection around the contact in the waterfall view so that it becomes highlighted. Clicking on any part of a line will select the entire contact.

2. To select a number of contacts, drag the selection across a large enough area so that the contacts within it are highlighted.
