Menu | Tools > Run Process Designer Model |
This command enables to run a process model file, created in Process Designer. Values for pre-defined process parameters are entered, then the process is run.
Process model files are created in Process Designer.
Procedure
1. Select the Run Process Designer Model command.
The Select a Process Model to Run dialog box is displayed.
2. Browse to and select a *.processmodel Process Definition file.
3. Click Open.
4. (

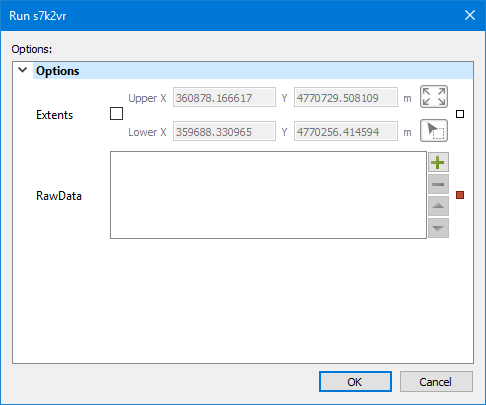

The Run dialog box will appear, with the process model file name in the title bar.
The dialog box will display fields that require specific data or settings in order to run the model file, for example, selecting raw data, track lines or surface to be processed.
These requirements will have been set in Process Designer, in the properties of processes included in the model file.
Mandatory data is indicated by the red status indicator to the right of the field. In the example above, RawData must be selected.
5. Click the Add button
.
6. In the Open files dialog box, select the required file or files.
7. Click Open.
8. Click OK to run the process model file.
Processing status box will be displayed with a progress bar, and output is reported for each process in the Output window.
