All navigation sources from Kongsberg *.all files can be referenced directly instead of converted. The primary navigation source in the *.all file will be set active on conversion to HIPS. This means no navigation is converted to HIPS format, and these projects will not be compatible with versions of HIPS previous to 9.0.
Navigation timestamps can be selected from either the logging system or from the GPS string in the navigation datagram. The default setting is Auto.
Retaining the default setting means the import process will search for GPS Height data, and if not found, will apply timestamps specified by the Installation datagram.
Interface

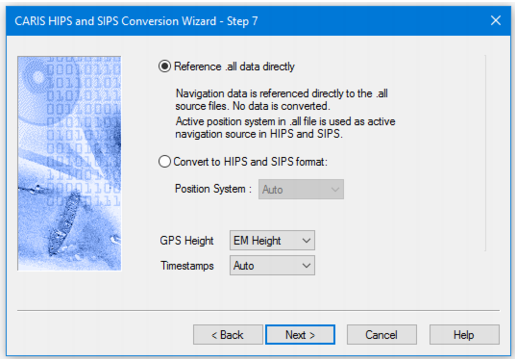

Options for converting Kongsberg ALL data to HIPS are displayed in the following dialog boxes.
Option | Description |
Reference *.all data directly | The default setting is to reference data files directly. |
Convert to HIPS and SIPS format | 1. Select Convert to HIPS and SIPS format to convert navigation data to HDCS. This activates the Position System field. |
Position System | 1. Select the navigation device number to convert if navigation is converted to HDCS, and the source of GPS height if GGA or GGK is used. • AUTO • NAVIGATION_1 • NAVIGATION_2 • NAVIGATION_3 The default value is AUTO, which uses the positioning system that is set as “active” from acquisition. |
GPS Height | 1. Select the GPS height device to use. • AUTO • MRU1 • MRU2 • HEIGHT • GGA • GGK The default value is AUTO, which uses the GPS string in the positioning system that is set as “active” from acquisition. |
Timestamps (*.ALL data only) | 1. Select GPS from the list to apply data from the GPS string. (This option only available for Kongsberg *.all data.) |
