Features and attributes in CARIS products are defined through catalogues.
A catalogue is composed of the following two components:
• a dictionary that defines what features and attributes are available for the product.
• a profile that links features and attributes, including relationships and allowed geometry.
Catalogues can be defined from specifications for official products, such as:
• S-57 ENC data
• Vector Product Data (VPF)
• S-57 and VPF Additional Military Layers (AML)
• CARIS Notebook Markers
• S-100 data
• SSDM
Catalogues can also be defined to describe features for any purpose.
CARIS modules access catalogues through the cataloguecontrol.xml file. This file links data in CARIS applications with the appropriate catalogue. The Catalogue Control File can be found in C:\Program Files\CARIS\<application>\<version>\system.
A catalogue control file can be selected from the Files and Folders section of the Options dialog box.
Because catalogues are in XML format, custom catalogues can be created. These custom products must be listed in the Catalogue Control File.
Do not modify existing catalogues.To create a new catalogue, copy information from existing files into new files or save existing files under new names. |
Existing catalogues can also be edited using the Catalogue Editor in CARIS. See the Catalogue Editor help for more information.

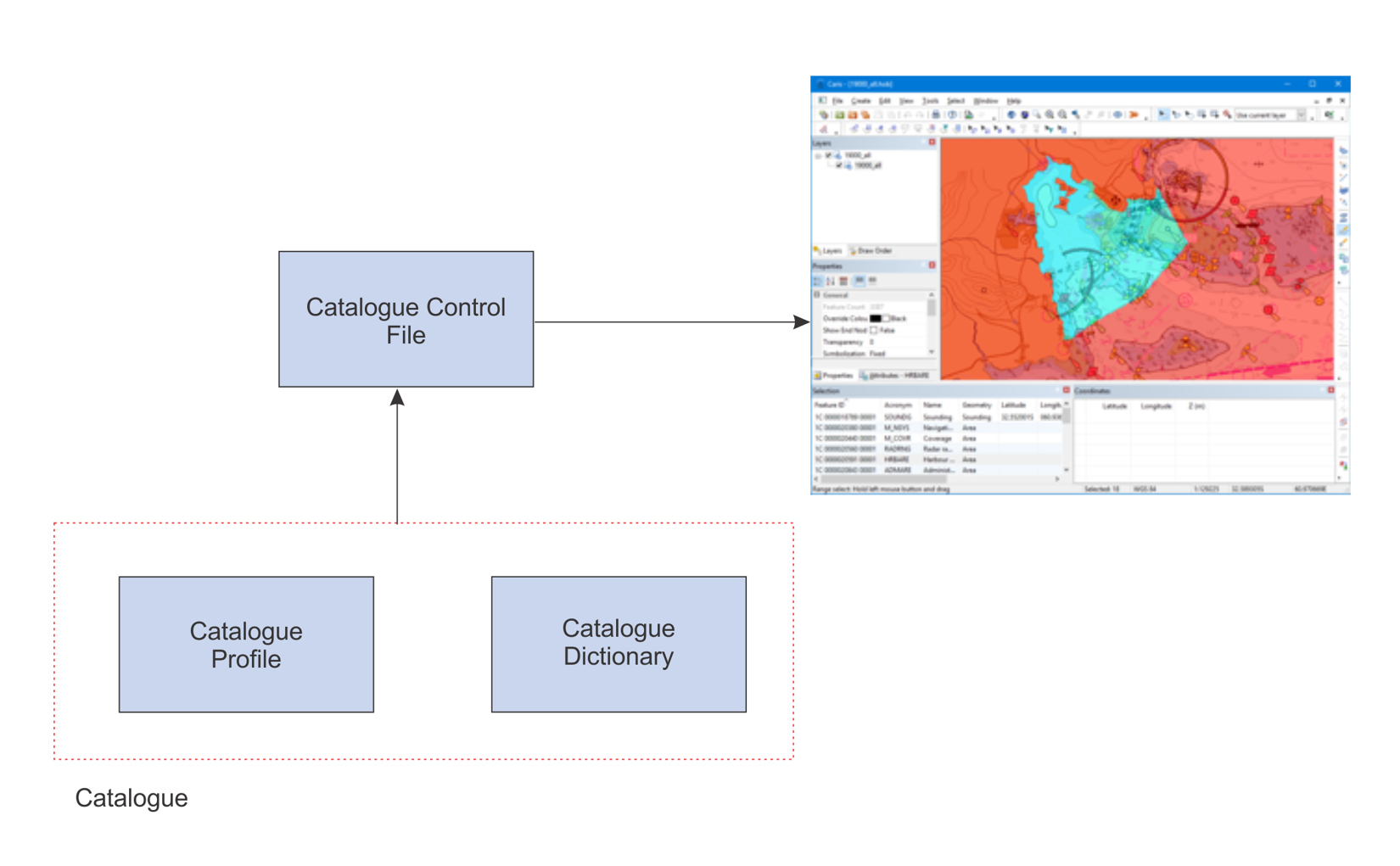

This diagram illustrates the relationship between catalogues and the Catalogue Control File.
This table lists the products along with the dictionaries and profiles are available in the CARIS installation.
Product Types | Dictionaries | Profiles |
Bathy Database | s5731Pool.xml | BathyProfile.xml |
Interchange Feature Format | iffprofile.xml | iffpool.xml |
INT1 charts | chartFeatureDictionary.xml | chartFeatureCatalogue.xml |
Law of the Sea | S5731Pool.xml, LOSDictionary_1_0.xml | LOSProfile_1_0.xml |
Law of the Sea 2.0 | S5731Pool.xml, LOSDictionary_2_0.xml, aml10ExtensionPool.xml | LOSProfile_2_0.xml |
Markers | notebookmarkerspool.xml | notebookmarkersprofile.xml |
Notebook™ | s5731Pool.xml | notebookProfile.xml |
S-57 AML 3.0 | s5731Pool.xml and AML_3_0_ExtensionDict.xml | AML_3_0_Profile.xml |
S-57 bathymetric Marine Information Overlay (bMIO) | s5731Pool.xml | bmio_1_profile.xml |
S-57 Contour Line Bathymetry 1.0 | s5731Pool.xml and aml10ExtensionPool.xml | aml10CLBProfile.xml |
S-57 Contour Line Bathymetry 2.1 | s5731Pool.xml and aml21ExtensionPool.xml | aml21CLBProfile.xml |
S-57 Contour Line Bathymetry 3.0 | s5731Pool.xml and AML_3_0_ExtensionDict.xml | AML_3_0_CLB_Profile.xml |
S-57 Ed 3.0 ENC | s5731Pool.xml | s5731Profile.xml |
S-57 Ed 3.1 ENC | s5731Pool.xml | enc31Profile.xml |
S-57 Environment, Seabed, and Beach 1.0 | s5731Pool.xml and aml10ExtensionPool.xml | aml10ESBProfile.xml |
S-57 Environment, Seabed, and Beach 2.1 | s5731Pool.xml and aml21ExtensionPool.xm | aml21ESBProfile.xml |
S-57 Environment, Seabed, and Beach 3.0 | s5731Pool.xml and AML_3_0_ExtensionDict.xml | AML_3_0_ESBProfile.xml |
Inland ENC 2.0 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_2_0_Profile.xml |
Inland ENC 2.1 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_2_1_Profile.xml |
Inland ENC 2.2 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_2_2_Profile.xml |
Inland ENC 2.3 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_2_3_Profile |
Inland ENC Overlay 2.0 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_Overlay 2_0_Profile.xml |
Inland ENC Overlay 2.1 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_Overlay 2_1_Profile.xml |
Inland ENC Overlay 2.2 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_Overlay 2_2_Profile.xml |
Inland ENC Overlay 2.3 | s5731Pool.xml and IENC_2_x_Dict.xml | IENC_Overlay 2_3_Profile.xml |
Inland ENC 2.4 | s5731Pool.xml | IENC_2_4_Profile.xml |
Inland ENC 2.4 Overlay | s5731Pool.xml | IENC_2_4_Profile.xml |
S-57 Large Bottom Objects 1.0 | s5731Pool.xml and aml10ExtensionPool.xml | aml10LBOProfile.xml |
S-57 Large Bottom Objects 2.1 | s5731Pool.xml and aml21ExtensionPool.xml | aml21LBOProfile.xml |
S-57 Large Bottom Objects 3.0 | s5731Pool.xml and AML_3_0_ExtensionDict.xml | AML_3_0_LBO_Profile.xml |
S-57 Maritime Foundation and Facilities 1.0 | s5731Pool.xml and aml10ExtensionPool.xml | aml10MFFProfile.xml |
S-57 Maritime Foundation and Facilities 2.1 | s5731Pool.xml and aml21ExtensionPool.xml | aml21MFFProfile.xml |
S-57 Maritime Foundation and Facilities 3.0 | s5731Pool.xml and AML_3_0_ExtensionDict.xml | AML_3_0_MFF_Profile.xml |
S-57 Routes, Areas, and Limits 1.0 | s5731Pool.xml and aml10ExtensionPool.xml | aml10RALProfile.xml |
S-57 Routes, Areas, and Limits 2.1 | s5731Pool.xml and aml21ExtensionPool.xml | aml21RALProfile.xml |
S-57 Routes, Areas, and Limits 3.0 | s5731Pool.xml and AML_3_0_ExtensionDict.xml | AML_3_0_RAL_Profile.xml |
S-57 Small Bottom Objects 1.0 | s5731Pool.xml and aml10ExtensionPool.xml | aml10SBOProfile.xml |
S-57 Small Bottom Objects 2.1 | s5731Pool.xml and aml21ExtensionPool.xml | aml21SBOProfile.xml |
S-57 Small Bottom Objects 3.0 | s5731Pool.xml and AML_3_0_ExtensionDict.xml | AML_3_0_SBO_Profile.xml |
Inland ENC (USACE) | s5731Pool.xml | USACE_iencprof40.xml |
CARIS EAM™ Shoals | s5731Pool.xml, | ShoalsProfile.xml |
VPF Contour Line Bathymetry | vpfFACC_2_1_dictionary.xml vpfUserDefinedDictionary.xml | vpfCLB_2_1_profile.xml |
VPF DNC Approach Library | vpfFACC_2_1_dictionary.xml vpfUserDefinedDictionary.xml | vpfdncapproachprof.xml |
VPF DNC Browse Library | vpfFACC_2_1_dictionary.xml vpfUserDefinedDictionary.xml | vpfdncbrowseprof.xml |
VPF DNC Coastal Library | vpfFACC_2_1_dictionary.xml vpfUserDefinedDictionary.xml | vpfdnccoastalprof.xml |
VPF DNC General Library | vpfFACCDictionary.xml and vpfUserDefinedDictionary.xml | vpfdncgeneralprof.xml |
VPF DNC Harbor Library | vpfFACC_2_1_dictionary.xml vpfUserDefinedDictionary.xml | vpfdncharborprof.xml |
VPF Feature and Attribute Catalogue | vpfFACC_2_1_dictionary.xml | vpfFACC_2_1_profile.xml |
VPF Tactical Ocean Data 0 | vpfFACC_2_1_dictionary.xml vpfUserDefinedDictionary.xml | vpfTOD0_2005_profile.xmll |
VPF Vector Smart Map | vpfFACC_2_1_dictionary.xml vpfUserDefinedDictionary.xml | vpfVMAPProfile.xml |
