S-101 Portrayals

Below is the S-101 section of the Portrayal Control File.

<PresentationOptions Type="XSLT" Name="S-101 Draft (DCEG 201404)

Simplified Symbolized Boundaries"Description="S-101 Draft (DCEG 201404)

Simplified Symbolized Boundaries">

   <TranslationFile>%S100Config%\system\Portrayal\S-101\

    Rules\main_SimpleSymbols.xsl</TranslationFile>

   <SymbolFiles Directory="%S100Config%\system\Portrayal\

    S-101\symbols" Type="SVG" />

   <LineStyles Directory="%S100Config%\system\Portrayal\

    S-101\LineStyles"

    Schema="%S100Config%\system\Portrayal\S100LineStyle.xsd" />

   <AreaFills Directory="%S100Config%\system\Portrayal\S-101\AreaFills"

    Schema="%S100Config%\system\Portrayal\S100AreaFill.xsd" />

   <ColourFiles Directory="%S57Config%\symbolization\colcalib" />

</PresentationOptions>

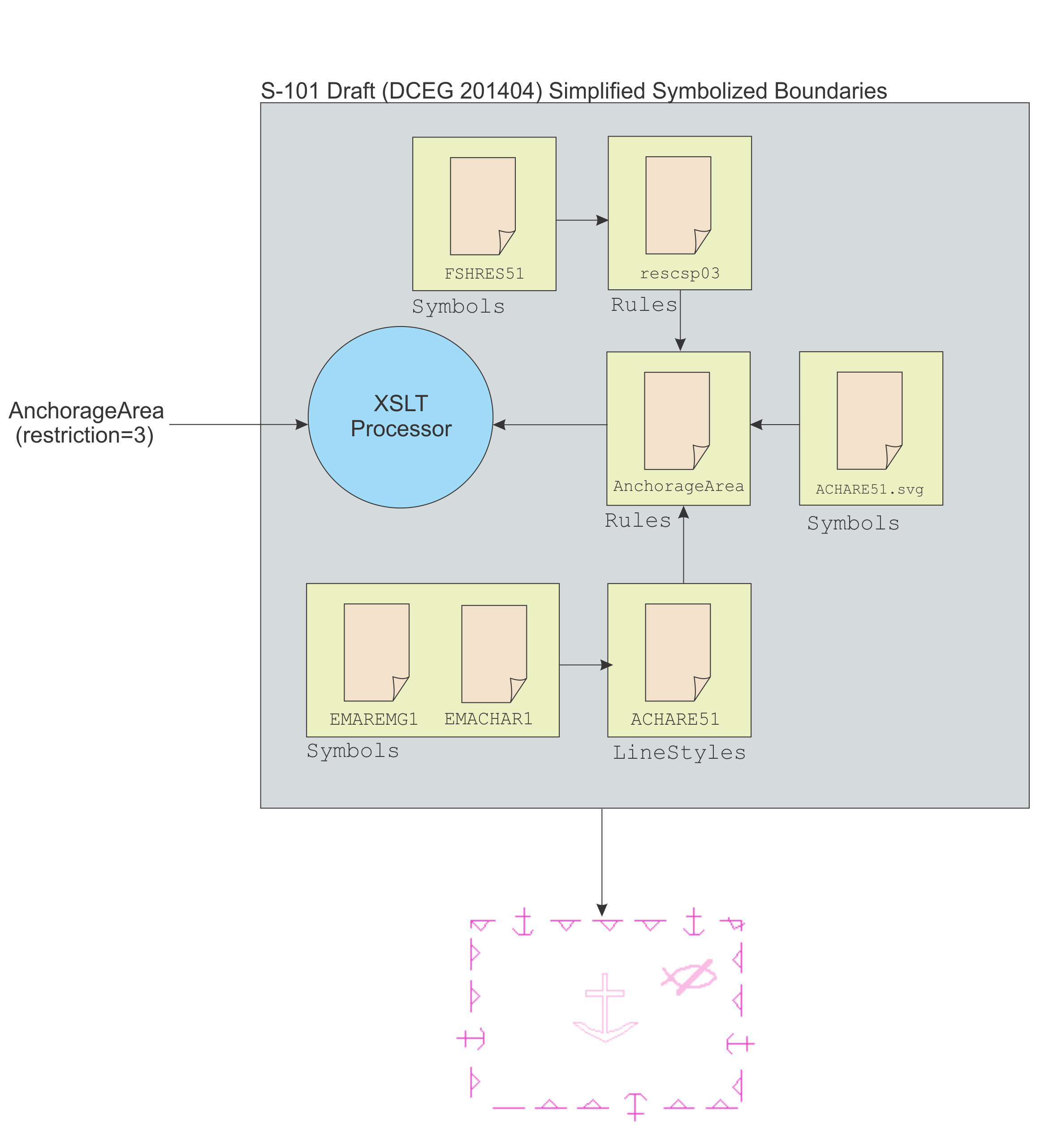

The following image shows how the S-101 files are used to draw an Anchorage Area feature.

S-101 uses XSLT (Extensible Markup Language Stylesheet) files that are run through an XSLT processor.

The path for S-101 XSLT file is referenced in the Portrayal Control File from the <TranslationFile> tag:

<TranslationFile>%S100Config%\system\Portrayal\S-101\Rules\

main_SimpleSymbols.xsl</TranslationFile>

The main_SimpleSymbols.xsl file is an XSLT file that lists other XSLT files responsible for drawing text and features in S-101 charts

Because the feature in the above example is an Anchorage Area, drawing instructions are read from the AnchorageArea_Symbolized_Boundaries.xsl file that is listed in main_SimpleSymbols.xsl:

<!--Include templates/rules for: AnchorageArea-->

<xsl:include href="AnchorageArea_SYMBOLIZED_BOUNDARIES.xsl"/>

The Anchorage Area is a composite of point and line objects. Point information is read from the <pointInstruction> element in AnchorageArea_Symbolized_Boundaries.xsl. See below.

<pointInstruction>

   <featureReference>

      <xsl:value-of select="@id"/>

   </featureReference>

   <viewingGroup>26220</viewingGroup>

   <displayPlane>UNDERRADAR</displayPlane>

   <drawingPriority>9</drawingPriority>

   <symbol reference="ACHARE51">

      <areaPlacement placementMode="VisibleParts"/>

   </symbol>

</pointInstruction

The <symbol reference="ACHARE51"> element refers the anchorage symbols that is drawn in the centre of the area.

Symbols are stored as Scalable Vector Graphics (SVG) in the symbols folder that is set through <SymbolFiles/> the section of the Portrayal Control File.

Information for the border around the anchorage area is contained in the <lineInstruction> element in AnchorageArea_Symbolized_Boundaries.xsl:

<lineInstruction>

   <featureReference>

      <xsl:value-of select="@id"/>

   </featureReference>

   <viewingGroup>26220</viewingGroup>

   <displayPlane>UNDERRADAR</displayPlane>

   <drawingPriority>9</drawingPriority>

   <lineStyleReference reference="ACHARE51"/>

</lineInstruction>

The <lineStyleReference/> tag sets the line style to the ACHARE51 XML file.

The LineStyles folder that contains the line style XML files is set through the <LineStyles/> tag for S-101 in the Presentation Control File.

Drawing instructions for Anchorage Area borders are read from the ACHARE51.xml file in the LineStyles folder. See below.

<?xml version="1.0" encoding="ISO-8859-1"?>

<?S100lineage source="S52Preslib4.0" format="S100Ed2" version="0.1"

creationDate="2015-03-13"?>

<?S100Meta name="ACHARE51" exposition="boundary of an anchorage area"?>

<lineStyle>

   <intervalLength>32.3</intervalLength>

   <pen width="0.32">

      <color>CHMGD</color>

   </pen>

   <dash>

      <start>2</start>

      <length>6</length>

   </dash>

   <dash>

      <start>18.2</start>

      <length>6</length>

   </dash>

   <dash>

      <start>26.2</start>

      <length>6</length>

   </dash>

   <symbol reference="EMAREMG1">

      <position>5</position>

   </symbol>

   <symbol reference="EMACHAR1">

      <position>13.1</position>

   </symbol>

   <symbol reference="EMAREMG1">

      <position>21.2</position>

   </symbol>

   <symbol reference="EMAREMG1">

      <position>29.3</position>

   </symbol>

</lineStyle>

From the above example, border symbolization for the Anchorage Area feature consists of dashes along with two symbols: EMAREMG1 and EMACHAR1. Both symbols are Scalable Vector Graphics (SVG) and are located in the Symbols folder.

The same five-character colour tokens that are used for S-52 are also used for S-101. The Anchorage Area is displayed in the CHGMD colour token. The folder that contains the colour palettes with colour tokens is set through <ColourFiles/> tag.

The <ColourFiles/> tag is set to the colcalib folder which contains five colour palettes. Each palette is based on an ECDIS (Electronic Chart Display and Information System) display mode.

If the display mode in CARIS is set to day_bright. The entry for the CHMGD colour token in day_bright.xml colour palette is used.

<Colour Index="4" Type="RGB" Token="CHGRD">

   <R>161</R>

   <G>164</G>

   <B>146</B>

</Colour>

The Anchorage Area feature also has the attribute restriction=3 which means that fishing is prohibited. Attribute information is contained in another XSLT file, RESCSP03 that is called from AnchorageArea_Symbolized_Boundaries through the
<call-template> element. See below.

<xsl:call-template name="RESCSP03">

   <xsl:with-param name="viewingGroup">26220</xsl:with-param>

   <xsl:with-param name="displayPlane">UNDERRADAR</xsl:with-param>

   <xsl:with-param name="drawingPriority">9</xsl:with-param>

</xsl:call-template>

The following instructions are read from RESCSP03:

<xsl:when test="restriction = 3 or restriction = 4 or restriction = 5 or

restriction = 6 or restriction = 24"> <!-- No Fishing -->

   <xsl:choose>

      <xsl:when test="restriction = 13 or restriction = 16 or

       restriction = 17 or restriction = 23 or restriction = 25 or

       restriction = 26 or restriction = 27 ">

         <xsl:text>FSHRES61</xsl:text>

</xsl:when>

      <xsl:when test="restriction = 9 or restriction = 10 or

       restriction = 11 or restriction = 12 or restriction = 15 or

       restriction = 18 or restriction = 19 or restriction = 20 or

       restriction = 21 or restriction = 22">

         <xsl:text>FSHRES71</xsl:text>

      </xsl:when>

      <xsl:otherwise>

      <!-- draw centred symbol FSHRES51 -->

         <xsl:text>FSHRES51</xsl:text>

      </xsl:otherwise>

   </xsl:choose>

</xsl:when>

Since the only restriction is 3 (no fishing), the FSHRES51 symbol is used.

All these files combine to draw the Anchorage Area.
