Menu | Edit > LIDAR > View Waveforms |
Tool |
|
Properties and controls for LIDAR data are located on a tab in the Control window.
• In Subset Editor, the LIDAR properties are displayed in the LIDAR layer of the Subset Editor tab.
• The same controls are available in Swath Editor, on a tabbed page of the Swath Editor control window. To see these controls in Swath Editor:
1. Right-click on the data in a View window to see a pop-up menu.
Menu | Edit > LIDAR > View Waveforms |
Tool |
|
2. Select View Waveform.
This will open display the waveform window.
The LIDAR tabbed page appears on the Swath Editor window, and the Waveform window is opened. Nothing is visible in the Waveforms window until data is selected.
To display the LIDAR controls in Subset Editor:
1. Open Subset Editor and load a subset of the LIDAR data.
2. Highlight the LIDAR layer in the data tree on the Subset Editor control window.
3. Select soundings in one of the Swath Editor view windows.

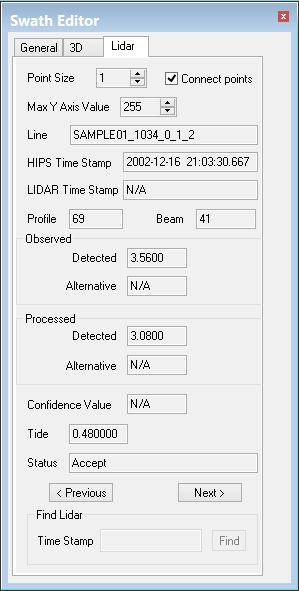

Properties
The following properties for the selected sounding are displayed in the LIDAR tab in both editors:
Options | Description |
Point Size | Change the size of the points that describe the waveform graphs. |
Connect Points | Select this option to draw a line through each of the points in the graph. |
Max Y Axis Value | Change the scale of the Y axis to display less or more of the waveform. |
Line | Identifies the superselected line. |
HIPS Time Stamp | Year-Month-Day-Hour-Minute-Seconds-Milliseconds. |
LIDAR Time Stamp | Half milliseconds since midnight (SHOALS only). Microseconds (Hawkeye data). |
Profile (number) | The along-track position of the sounding. |
Beam (number) | The across-track position of the sounding. |
Observed / Processed | Fields display the sounding values when converted to HIPS format. If any processing (such as tide) is applied to the Observed data the new value will be displayed in the Processed fields. |
Detected | The value designated by the acquisition system as being the sounding depth. If a Detected depth is selected, an asterisk is displayed beside the field. |
Alternative | If the data includes an alternative depth value from the return, it will be displayed here. If you select an alternative depth, an asterisk is displayed beside the field. (SeeSelecting Detected and Alternative Data. Note: Not all Hawkeye data contain alternate depths that can be highlighted or swapped with the primary depths. |
Confidence value | The confidence value for the sounding (SHOALS only). |
Tide | Tide data for the sounding, if there is any such data in the file. (Not all formats contain tide data, in which case the field shows a value of zero.) If tide data is added, data must be merged before tide value can be displayed. Note: Hawkeye data does not contain tide data. |
Status | Current status flag for the selected sounding. |
Previous / Next buttons | Click the Next or Previous button to moves to the next or previous selected sounding by ping and beam number. |
Find LIDAR Time Stamp | Select a sounding by its time stamp. Time stamp for Hawkeye data must be entered in microseconds |
