Menu | Tools > Features > Create Soundings Inside Contours > Superselection/Selection |
Similar to the Quick Creator command, the Create Soundings Inside Contours command allows users to manually create features or designate soundings using the existing values in an area. Instead of using a cursor-defined area, the application analyzes the data within enclosed contours and creates/designates soundings based on user-defined criteria. This tool is useful for identifying areas where there is an unidentified difference in depth or height in relation to the areas surrounding the contours.
Related commands:
• Create Features from Selection
Interface

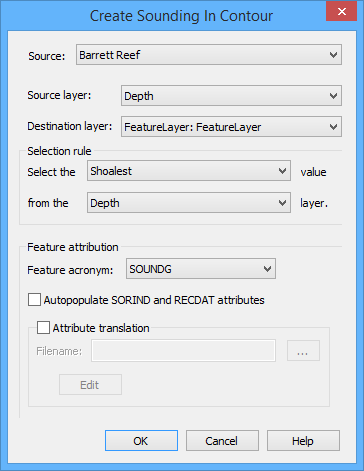

The Create Soundings Inside Contours command uses the following dialog box.
Option | Description |
Source | The Source is defined by the surface that was selected at the time the command was initiated. This field cannot be changed. |
Source layer | The attribute layer from which Z-values will be read for the designated soundings or new features. |
Destination layer | This field controls which function the Quick Creator will perform and where new features will be created. • If you choose a feature layer, new soundings or point features will be created on the selected layer. • If you choose a Designated layer of a surface, soundings from the source layer will be flagged as designated. The Designated layer of the current surface is selected by default. If the current surface does not have a Designated layer, but the Designated option is selected, the layer will be created in the surface when you click OK on the dialog box. |
Selection rule | The Selection rule fields define how soundings will be selected for the designation or creation when an area is analyzed. 1. In the first drop-down list, select Deepest or Shoalest to define whether the command should look for the deepest or the shoalest value in the selected area. 2. In the second drop-down list, select the layer of the surface from which data will be collected. Only layers of the selected surface are available. |
Feature acronym | The Feature attribution fields allow you to define the type of features to create and metadata values to assign to the features. If you do not wish to create features or populate attributes, these fields do not need to be populated and will be disabled if a Designated surface layer is selected as the Destination layer. The feature type of the new features is controlled by the Feature acronym field. The drop-down list for this field is populated according to the feature catalogue of the selected destination layer. The default selection will be the first sounding type feature in that catalogue. |
Autopopulate SORIND and RECDAT attributes | The source (SORIND) and date (RECDAT) attribute values for the new features are populated automatically if this option is enabled. |
Attribute translation | This option allows a translation file (.bsst) to be applied to the data to map attribute values. You can choose to use an existing translation file or create a new one. |
Filename | The BSST translation file to use for attribute mapping. An existing file can be used or a new file can be created. Click the browse button (...) to open or create a file. • If using an existing file, navigate to the file and select Open. • If creating a new file, navigate to the location in which to store the file, enter a name for the file in the File name field and click Open. |
Edit | Launch the Edit Translation File tool to edit the settings of the selected translation file. If a new file is being used, this tool is used to define the settings of the new file. See Edit Translation File for more details on this tool. |
Procedure
1. If creating features, open or create a feature layer.
2. In the Layers window, select the layer containing the contour features.
3. In the Display window, select the contours for which you want to create/designate soundings.
4. Select the appropriate Create Soundings Inside Contours command based on your selection.
5. Select the surface to use as the Source data for the process.
6. Select the attribute layer of the source surface from which data values will be used.
7. Select a Destination layer.
8. In the Selection rule section, choose whether the command should look for the Deepest or the Shoalest value inside the selected contours.
9. Select the layer of the surface from which data will be collected. Only layers of the selected surface are available.
10. Select the Feature acronym of the desired feature type from the drop‑down list.
11. [Optional] Select Autopopulate SORIND and RECDAT attributes to automatically populate the source and date attribute values for the new feature.
12. [Optional] Click the check box to enable the Attribute translation option to apply a translation file.
13. Click the Filename Browse (...) button.
14. Either navigate to an existing file, or enter a file name to create a new file. Click Open.
15. [Optional] Click Edit to launch the Edit Translation File tool.
16. [Optional] Define the attribute mapping to be used and click OK to return to the Create Sounding In Contour dialog box.
17. Click OK to create features or designate soundings.
