Add Depth

In Single Beam Editor, add a new sounding by supplying time and depth. The position of the new sounding is interpolated from the existing navigation data (using the supplied time). A quality code can also be entered. If you enter a new depth, a new observed depths file and a new slant range (travel time) file is generated.

You can add depths by selecting an existing sounding and inserting a new depth or by creating a new time stamp without selecting an existing sounding.

Related commands:

Change Depths

Interface

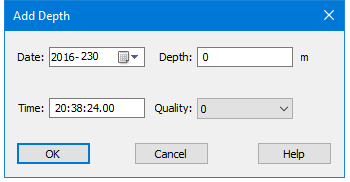

The depths are added using the Add Depth dialog box.

Procedure

1. Select a data line,

2. Open the Single Beam Editor.

3. Select the Add Depths command.

4. Select the Depth field and type a new depth value

5. Select the Time field and type a new time stamp value.

6. Select a new quality flag, if needed.

7. Click OK to add the new depth value to the file.
