UNB Options

UNB format as stored in *.merged files, can contain multibeam data.

Interface

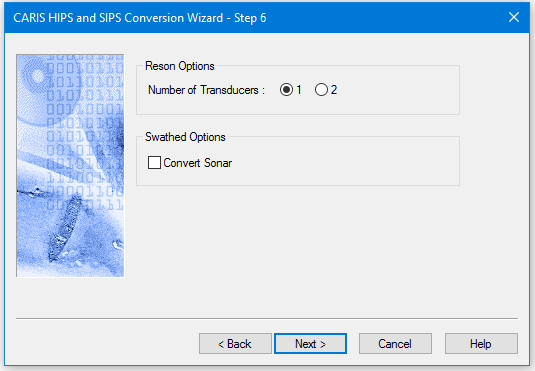

Conversion options for UNB data are available in this dialog box:

Procedure

1. Set the number of transducers. Default is 1.

2. Select the Convert Sonar option to import side scan data.

3. Click Next to continue the conversion process.
