Mask Edges

Prevent an edge from being drawn in the Display window. This can be useful for de-cluttering the display by hiding edges that pass behind other features, or for hiding the division between two areas.

Procedure

1. Select a feature.

2. Select the Components window.

3. Select an edge.

To select multiple edges, hold <Ctrl> as you click.

4. Select the Mask Edges command.

5. Select refresh to hide the masked edge.

The Components window shows that the edge is masked.

Example

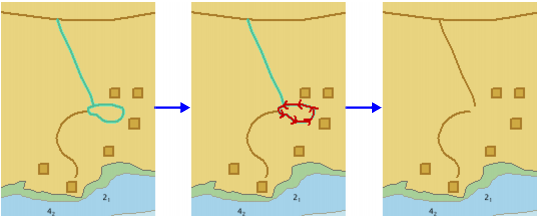

This example shows part of a line being masked.

The edge is not deleted, it is just not drawn.
