Configure Marker Filter

* CARIS HPD Source Editor



Tool

Define a filter that controls which markers are displayed in the Markers window.

Available only from the Markers window.

Related commands:

Interface

Option

Description

Database Query

Include other projects

On: The search will include multiple projects.

Off: The search is restricted to the current project.

Include closed markers

On: The search will include closed markers.

Off: The search will not include closed markers

View Filter

A filter is a clause or a series of clauses. Build a clause as follows:

1. Select an attribute from the first list.

2. Select an operator from the second list.

3. Select or type a value from the third list.

The value you enter and how you select it depends on the attribute type.

4. Click Add.

The clause is added to the list.

Attributes can be:

Marker ID

Type

Status

Timestamp

Owner

Text

Usage

Operators can be:

Equals

Not Equal To

Newer Than

Older Than

Procedure

1. Select the Configure Marker Filter command.

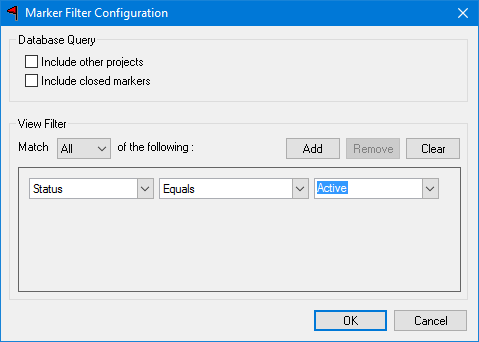

The Marker Filter Configuration dialog box is displayed.

2. [Optional] Set any necessary Diabase Query options.

3. Built a filter by defining one or more clauses.

4. Click OK.

Only markers meeting the conditions of the filter are listed in the Markers window.
