Create a new coverage containing nodes from a raster surface or point cloud that meet the criteria of a user-specified filter.
The new coverage will contain all of the bands present in the source coverage, but with the filter boolean expression applied to limit which nodes are populated. Typically, all bands are populated in the same areas after the filter, in locations where the values of the referenced bands pass the expression criteria. See Filter Expressions for more information on expressions.
The new coverage is created in memory only and will be lost when the application or the dataset is closed. If you wish to retain the new coverage, it can be saved to a CSAR file using the Save As command. See Save As for information on the command.
If you wish to simply filter the display of data, not actually reduce the data in the coverage, the Display Filter property in the Properties window for a coverage band can be used instead. See New Feature Layer for information on the Properties window. |
Interface

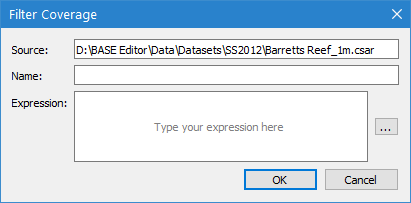

The Filter command uses the following dialog box.
Option | Description |
|---|---|
Source | The source coverage to be filtered. This field is populated with the coverage that was selected at the time the command was initiated and cannot be changed. |
Name | The name to assign to the new coverage. |
Expression | The filter expression to apply to the source data. The expression can be entered manually or the Expression Builder tool can be used. 1. Click the browse button (...) to launch the Expression Builder dialog box.
This dialog box is used to create a filter expression by typing in the expression field or selecting options from the Bands list and the operator buttons. 2. Double-click the name of the band that you want to filter, or type it into the expression field. 3. Use the keyboard or the buttons in the dialog box to add the operators and values to build the filter expression. 4. Click OK when finished to return to the Filter Coverage dialog box. The Expression field is populated with the defined filter expression. If filtering LAS data, string values must be enclosed in single quotes in the expression. For example, to filter Classification data with the value of “Water”, the expression would be Classification =’Water’. |
Procedure
1. Select a raster surface or point cloud in the Layers window.
2. Select the Filter command.
The Filter Coverage dialog box is displayed.
3. Enter a Name for the resulting coverage.
4. Click the browse button (...) to launch the Expression Builder dialog box and define the expression for the filter. Click OK to close this dialog box and return to the Filter Coverage dialog box.
5. Click OK.
A new coverage is added to the Layers window with the filter applied to the relevant band.
6. If needed, select the Save As command to save the coverage for future use.
