Edit Objects


Attributes
Spatial Type
Parent/Child

You can use the Catalogue Editor to edit existing objects:

Add and remove attributes

Change spatial type

Establish parent-child relationships.

To access editing commands, expand the list so that all the objects you want to edit are displayed under the Object Classes branch.

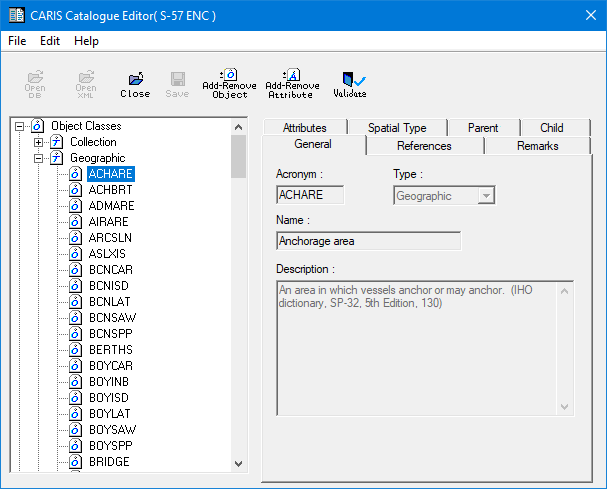

1. Select the object to be edited.

Information about the object is displayed in tabs at right.

The General, References, and Remarks tabs contain read-only fields. The Attributes, Spatial Type, Parent and Child tabs contain fields that can be modified.
